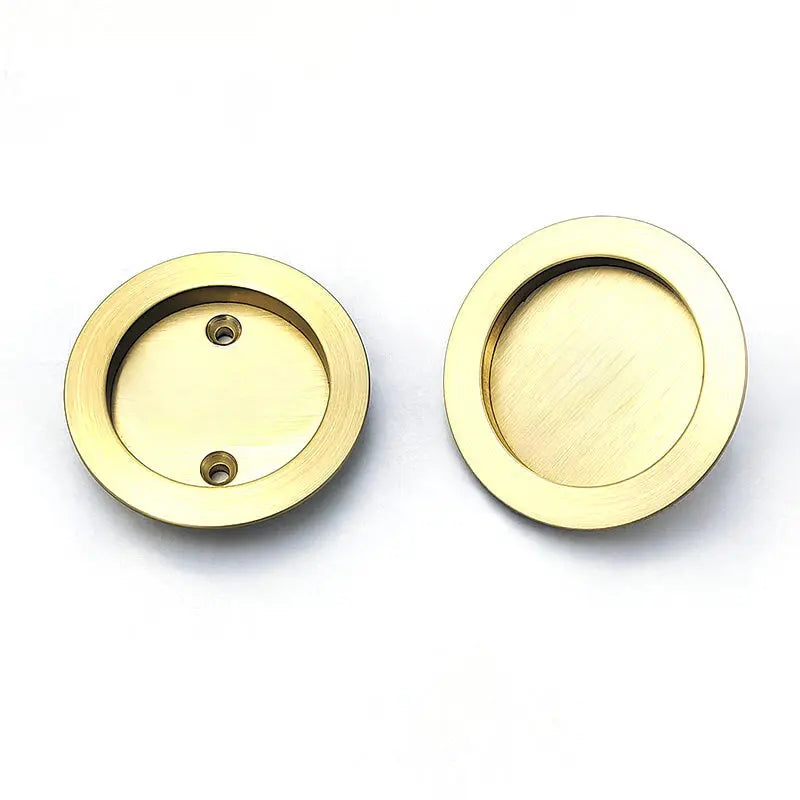

• Passage pocket door lock faceplate

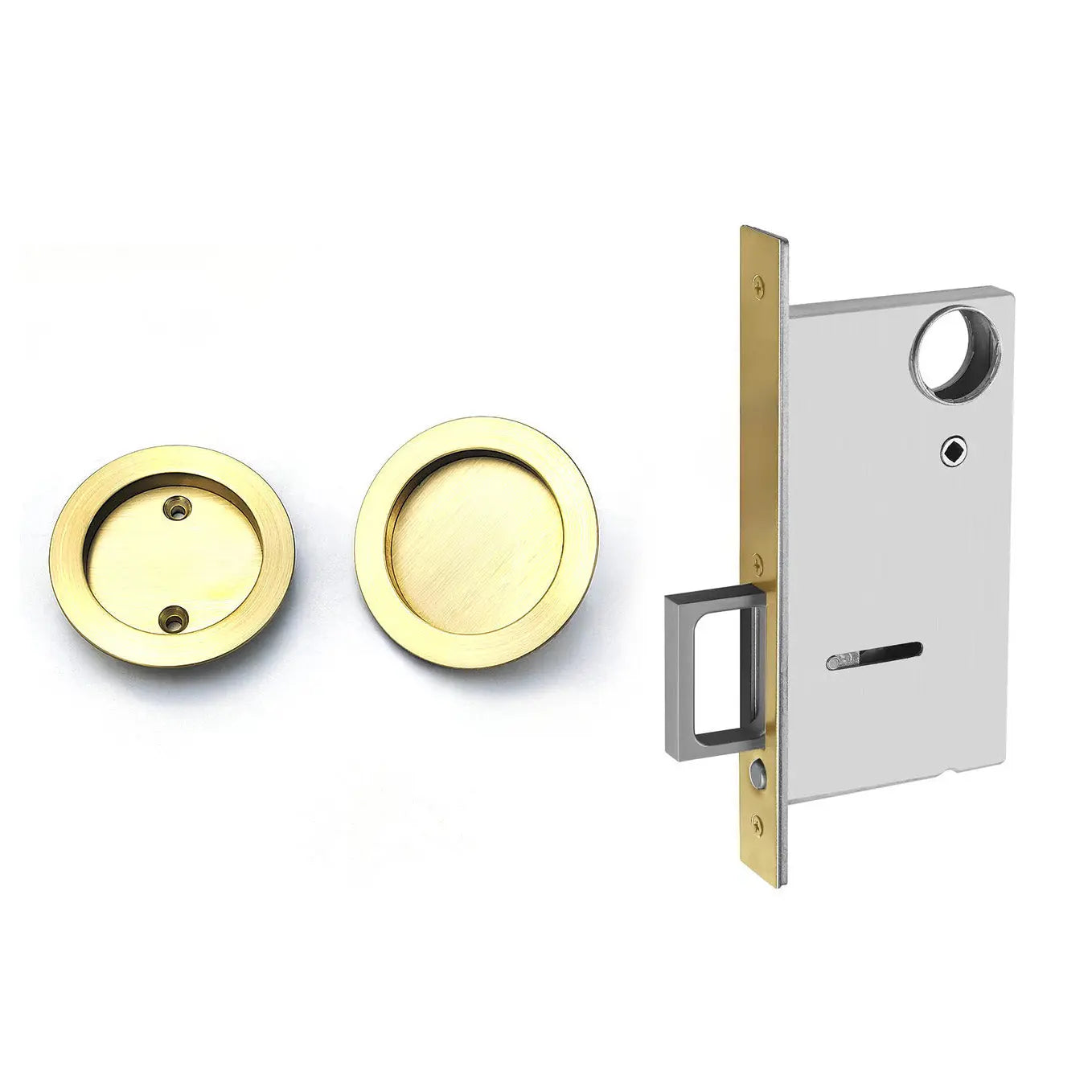

  • Passage Pocket Door Lock

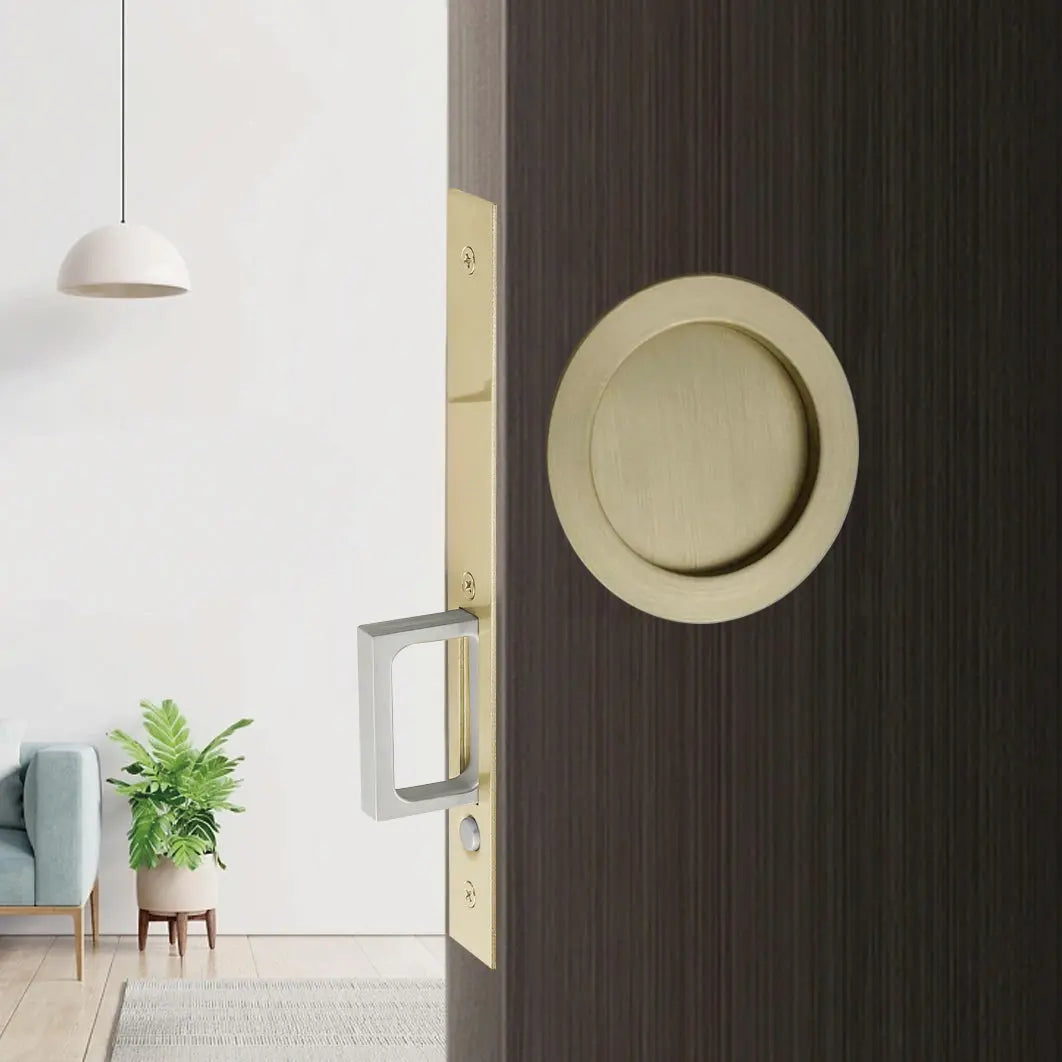

  • Passage pocket door lock installation effect
1 3

Zhongshan sunshine hardware Co.,Ltd

1808-PS-SB - Modern Zinc Alloy Pocket Door Lock with Satin Brass

$90.00
$90.00
Sale Sold out
Shipping calculated at checkout.

The satin brass round pocket door lock from Sunshine Hardware is designed with a 65mm diameter faceplate and high-quality solid brass construction for long-lasting durability. Suitable for door thicknesses from 35mm to 45mm (1-3/8" to 1-3/4"), it comes with a standard 2-3/8" (60mm) backset and a side pull handle for easy operation when the door is fully recessed into the wall. The satin brass finish gives a modern yet timeless look, blending beautifully with both contemporary and traditional interiors. Perfect for pocket doors, sliding partitions, and concealed interior doors, this brass sliding door lock combines elegance, comfort, and reliability — ideal for residential, commercial, and real estate projects.



Product Features
  • The satin brass finish pocket door locks are made of high-quality zinc alloy, with a brushed surface finish.
  • Invisible round pocket door handle design.
  • Paired with a high-precision 60mm backset lock body.
  • Side-mounted pop-up hidden handle, controlled by the side button for ejection.
  • Available in a variety of functions for passage, privacy, or entry doors.
  • Cross-type double hook latch, stable and safe.
  • Support product customization.
  • Lifetime mechanical warranty.
Specifications
  • Door Thickness: 1-3/8"(35mm) to 1/3/4"(45mm).
  • Backset: 2-3/8"(60mm).
  • Deadbolt: 1“(25.4mm).
  • Bolt Projection: 5/8" (15.5mm).
  • Cylinder: Schlage C keyway, 5-pin mortise cylinder with 2 keys; specialty keying services available.
  • Applicable center spacing: 35/45mm.
  • Structure: Fully sealed lockbody structure, suitable for left or right door.
Function

Passage with Lockcase:

  • Both sides are controlled by the lockcase push and pull.
  • The edge finger pull is operated by a push button.

Privacy with Emergency Release:

  • The door bolt is operated by an internal knob and an external coin emergency release device.
  • The edge finger pull operated by push button.

Entry with Single Cylinder:

  • Key outside or thumbturn inside retracts the deadbolt with a hook
  • The edge finger pull is operated by the push button
Installation

The sliding door lock made of zinc alloy can be installed by oneself, which is safe and easy to install. Each product comes with an installation manual, allowing you to learn and install it to your heart's content.

Installation Instructions
