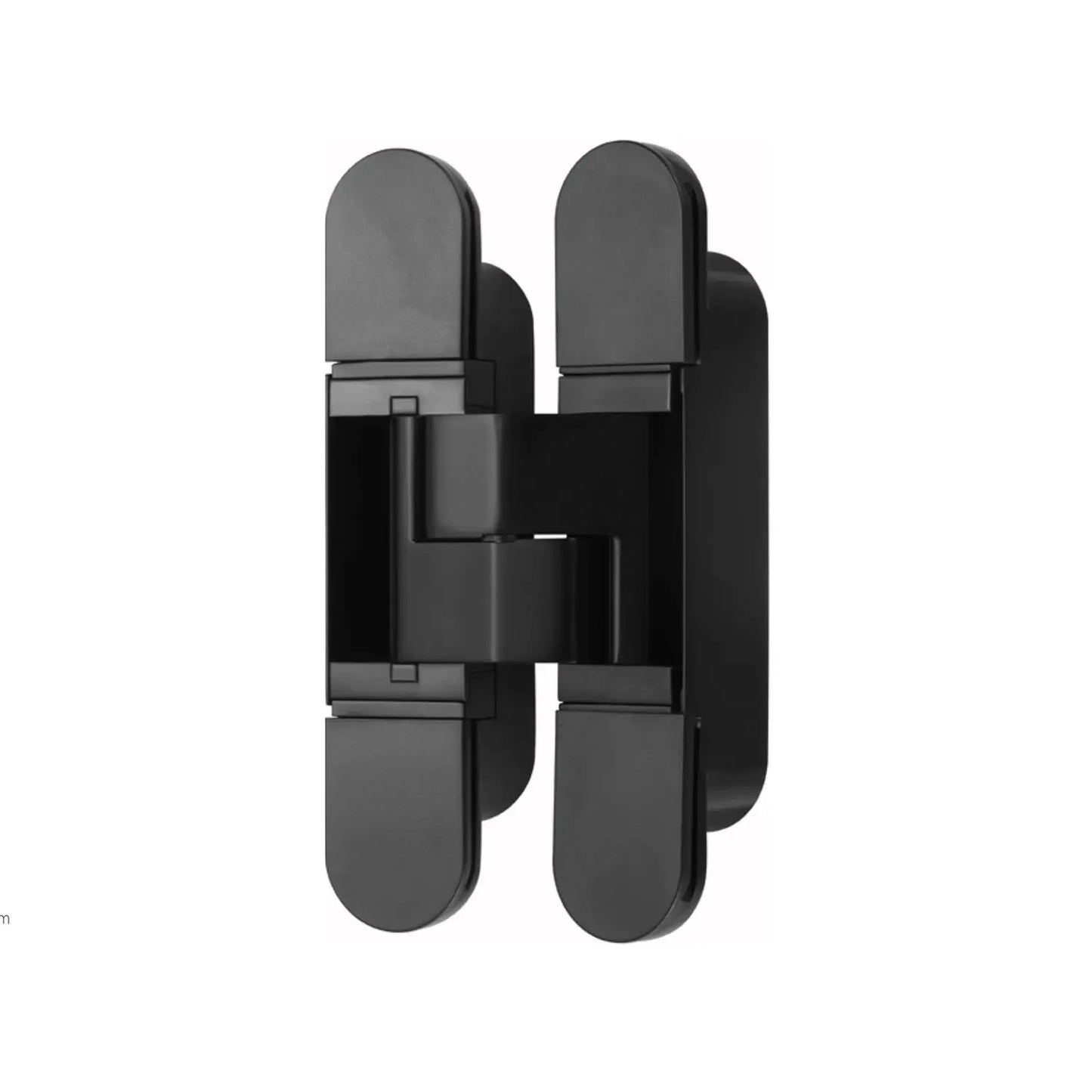

GE50 - 3D Concealed Door Hinges - 40kg

Introducing the 3D Concealed Door Hinges GE50, the perfect solution for all your door hardware needs. This high-quality hinge is designed to provide smooth and reliable operation for years to come. Made from durable materials, it can withstand heavy use and is suitable for both residential and commercial applications.

The 3D design allows for easy installation and adjustment, ensuring a perfect fit every time. Its sleek and modern appearance adds a touch of elegance to any door. Plus, the GE50 model is compatible with a variety of door types, making it a versatile choice for any project.

Trust in the quality and functionality of the 3D Hinge GE50 for all your door hardware needs. Order now and experience the difference it can make in your home or business.

Product Features
  • The GE50 3D concealed hinge is made of high-quality zinc alloy.
  • Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 40kg.
  • Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
  • A clean and seamless look delivers stylish, modern design solutions.
  • Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
  • Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

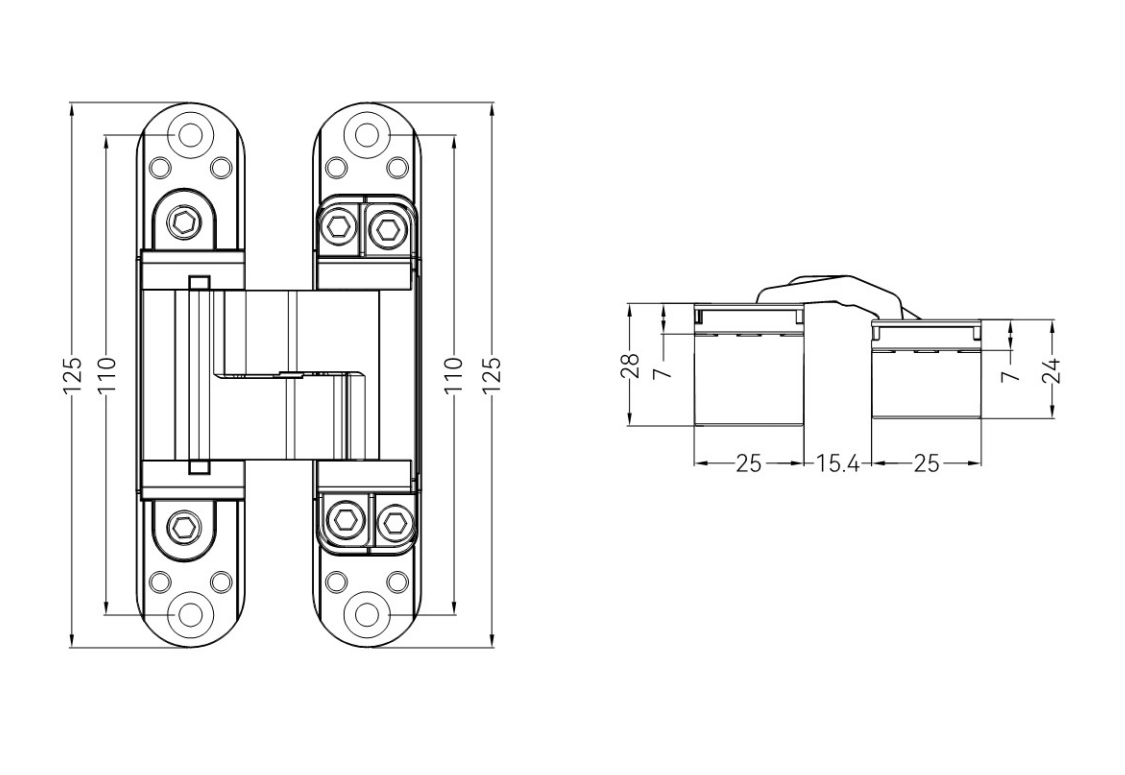

Specifications
  • Material: Zinc Alloy.
  • Load Capacity: 40 kg.
  • Opening angle: ≤180°.
  • Door Thickness: ≥35mm.
  • Length: 125/125mm.
  • Width: 25/25mm.
  • Up and down adjustment: ± 1.5 mm.
  • Left and right adjustment: ± 2.0 mm.
  • Before and after adjustment: ± 1.0 mm.
Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
