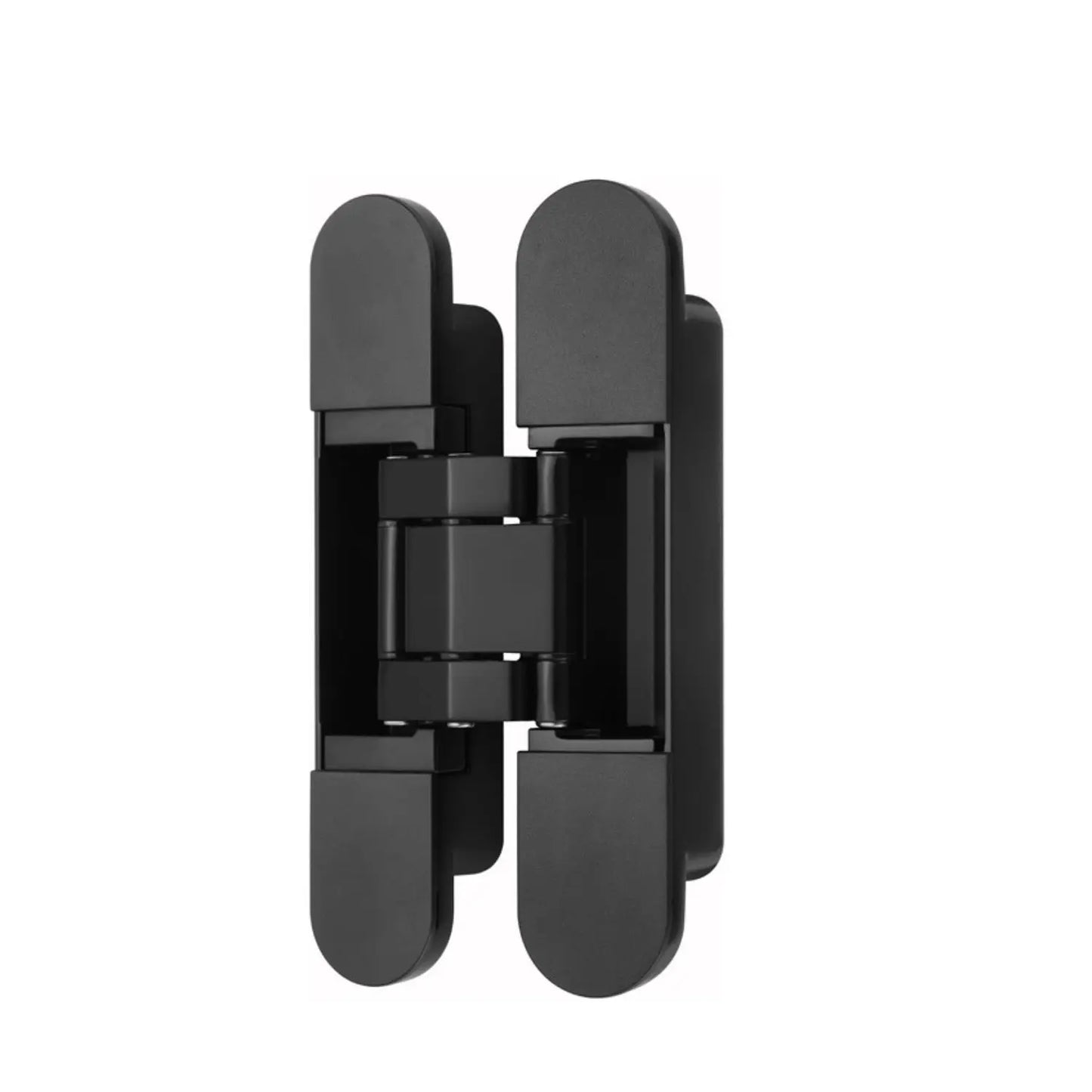

GE45 - 3D Concealed Hinges - 40kg
Explore the Benefits of 3D Concealed Hinges-GE45
Introducing the 3D Concealed Door Hinges GE45 from Sunshine Hardware. This innovative hinge is designed to provide maximum stability and durability for your doors. Made with high-quality materials, it can withstand heavy use and is perfect for both residential and commercial settings.
The 3D design allows for smooth and seamless movement, ensuring that your doors open and close effortlessly. It also features adjustable tension, allowing you to customize the hinge to fit your specific needs. Plus, the sleek and modern design adds a touch of elegance to any door.
Upgrade your door hardware with the 3D Hinge GE45 from Sunshine Hardware. Order now and experience the difference in quality and functionality.
If you have any questions, please click on the chat box in the bottom right corner to contact us, and I hope you can leave your contact information so that we won't be unable to find you. Alternatively, you can click on the link below to contact us.
Chat with us
Require quote
Contact us
Address: Room 1205, Qingfeng Deyuan Building, No. 3 Zhongshan 6th Road, East District, Zhongshan City, Guangdong Province, China.
Phone: +86 13726110546
WhatsApp: +852 69547368
Email:
beyondxu@sunshine-hardware.com
Business Hours: Monday - Saturday: 9:00 AM - 6:00 PM
3D Hinge
Product Feature
- The 3D hidden hinge is made of high-quality zinc alloy.
- Ultra high load-bearing capacity, with individual 3D hinges of different specifications having a load-bearing capacity of 40kg-200kg.
- The powerful adaptability range provides smooth door movement and a maximum opening angle of 180 degrees.
- A clean, seamless and tidy appearance can create fashionable and modern design solutions.
- Widely applicable to doors larger than 35mm.
- Not confined to one style, a good partner for cabinets, doors, and wardrobes.
3D Hinge

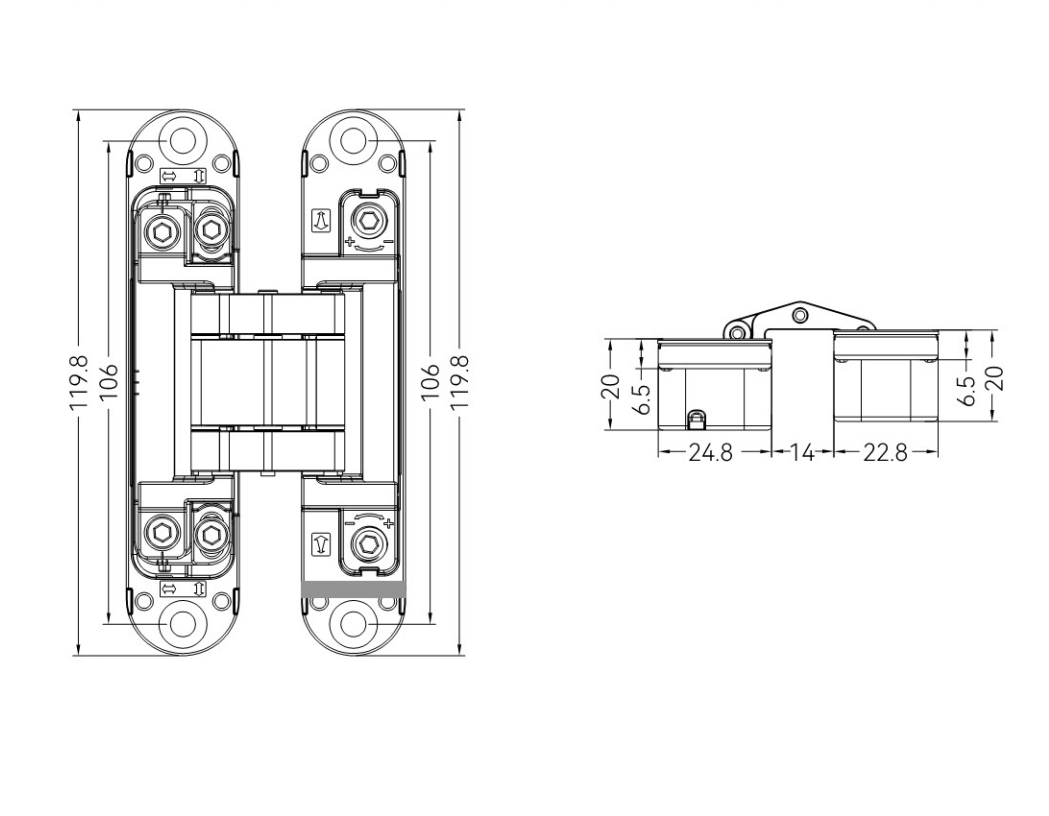

Specification
- Matrial: ZInc Alloy.
- Load Capacity: 40 kg.
- Opening angle: ≤180°.
- Door Thickness: ≥30mm.
- Length: 119.8/119.8mm.
- Width: 22.8/22.8mm.
- Up and down adjustment: ± 2.5 mm.
- Left and right adjustment: ± 2.0 mm.
- Beforeand after adjustment: ± 1.0 mm.
