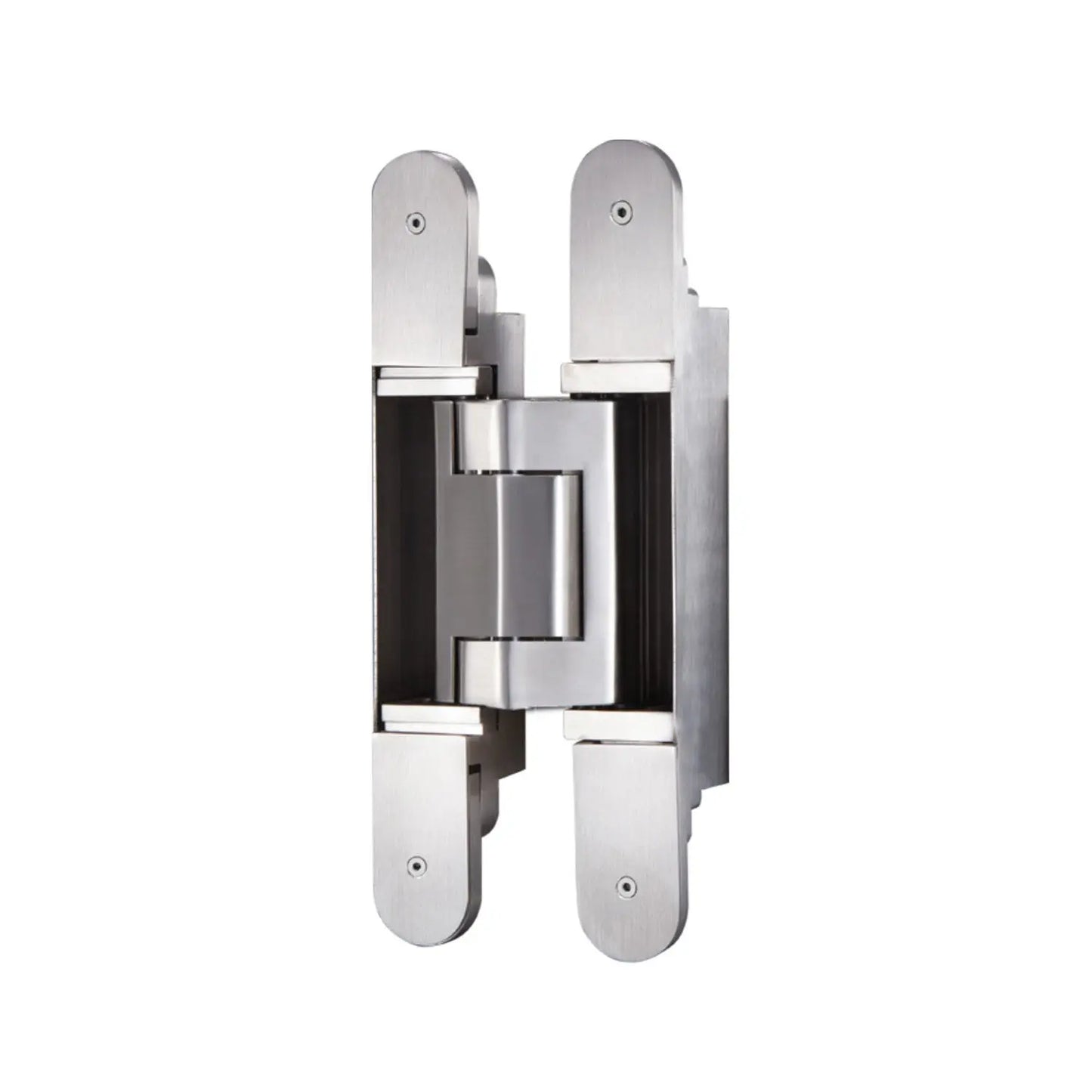

AD200 - 3D Concealed Door Hinges - 200kg

The AD200 3D Concealed Hinges is a heavy-duty hinge designed for doors weighing up to 200kg. Made by Sunshine Hardware, this hinge is built to withstand heavy use and provide reliable performance. Its 3D design allows for smooth and precise movement, making it ideal for commercial and industrial settings. The hinge is made from high-quality materials, ensuring durability and longevity. It is easy to install and can be used for both left and right-handed doors. With a weight capacity of 200kg, this hinge is perfect for heavy doors that require a strong and sturdy hinge. Upgrade your door hardware with the AD200 3D Hinge from Sunshine Hardware.

Product Features
  • The AD200 3D concealed hinge is made of high-quality stainless steel.
  • Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 200KG.
  • Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
  • A clean and seamless look delivers stylish, modern design solutions.
  • Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
  • Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

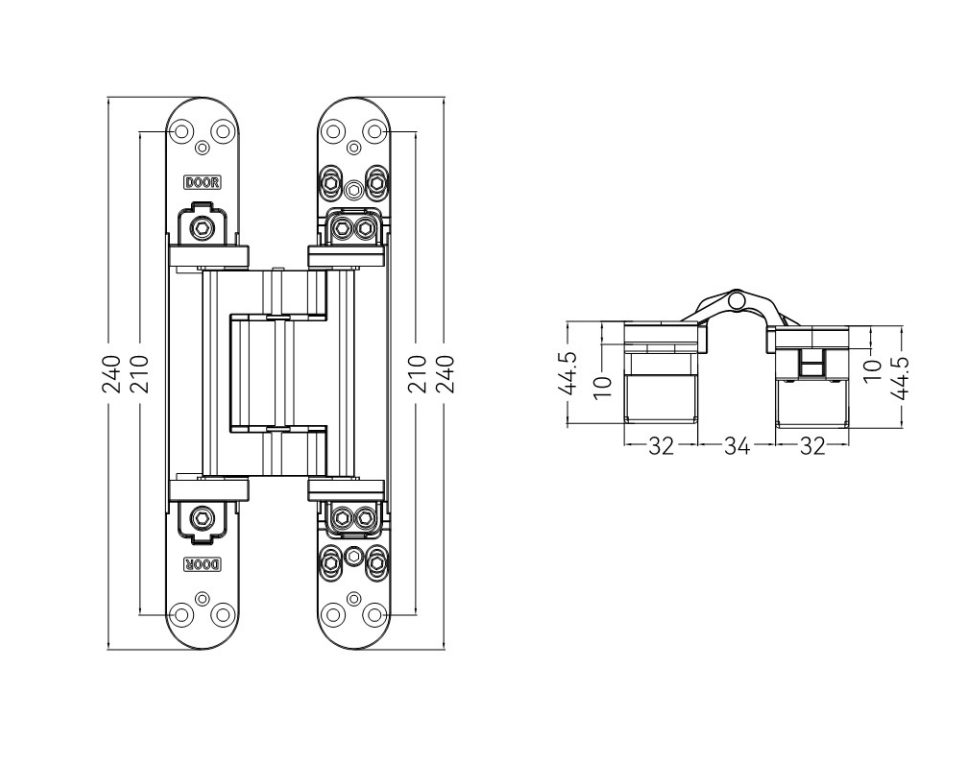

Specifications
  • Material: Stainless Steel 304.
  • Load Capacity: 200kg.
  • Opening angle: ≤180°.
  • Door Thickness: ≥45mm.
  • Length: 240/240mm.
  • Width: 32/32mm.
  • Up and down adjustment: ± 3 mm.
  • Left and right adjustment: ± 3 mm.
  • Before and after adjustment: ± 1.0 mm.
Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
