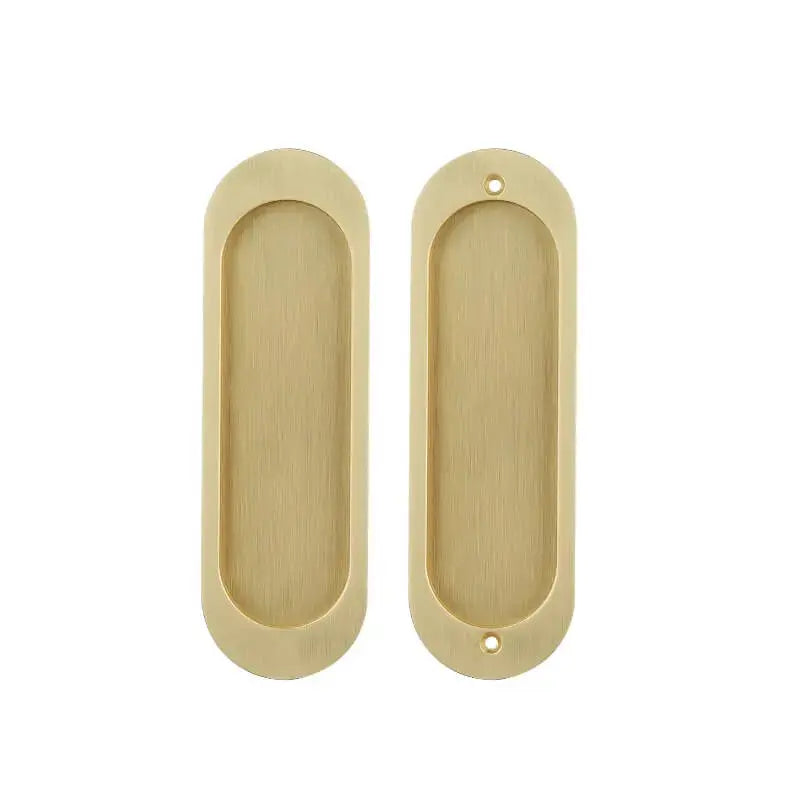

• Circular rectangular sliding door lock with Satin Brass

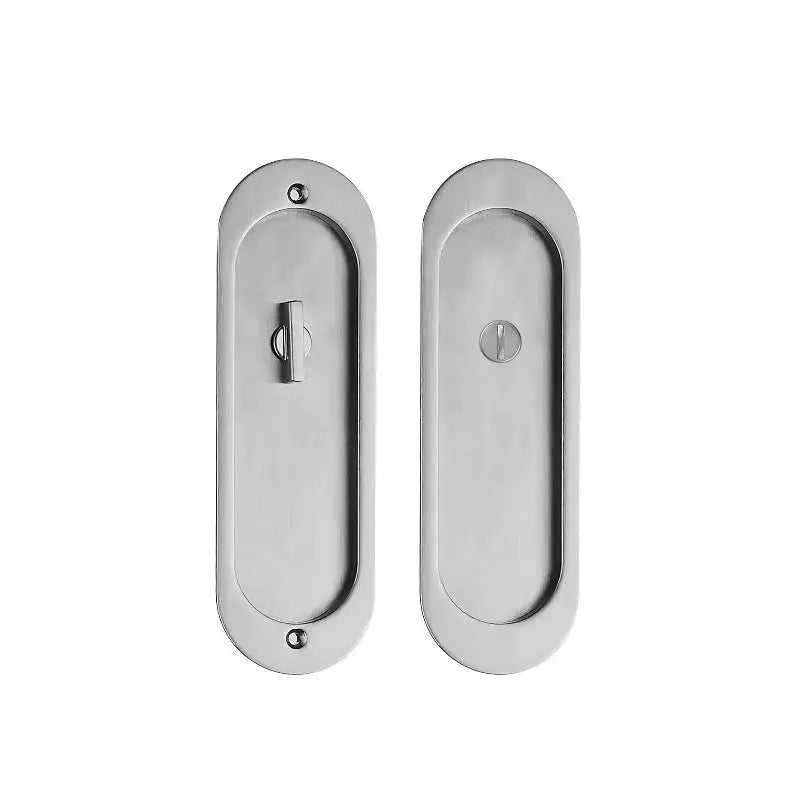

  • 1802 - Circular rectangular sliding glass door lock with Satin Nickel zhongshan sunshine hardware Co., Ltd
  • 1802 - Circular rectangular sliding glass door lock with Satin Nickel zhongshan sunshine hardware Co., Ltd

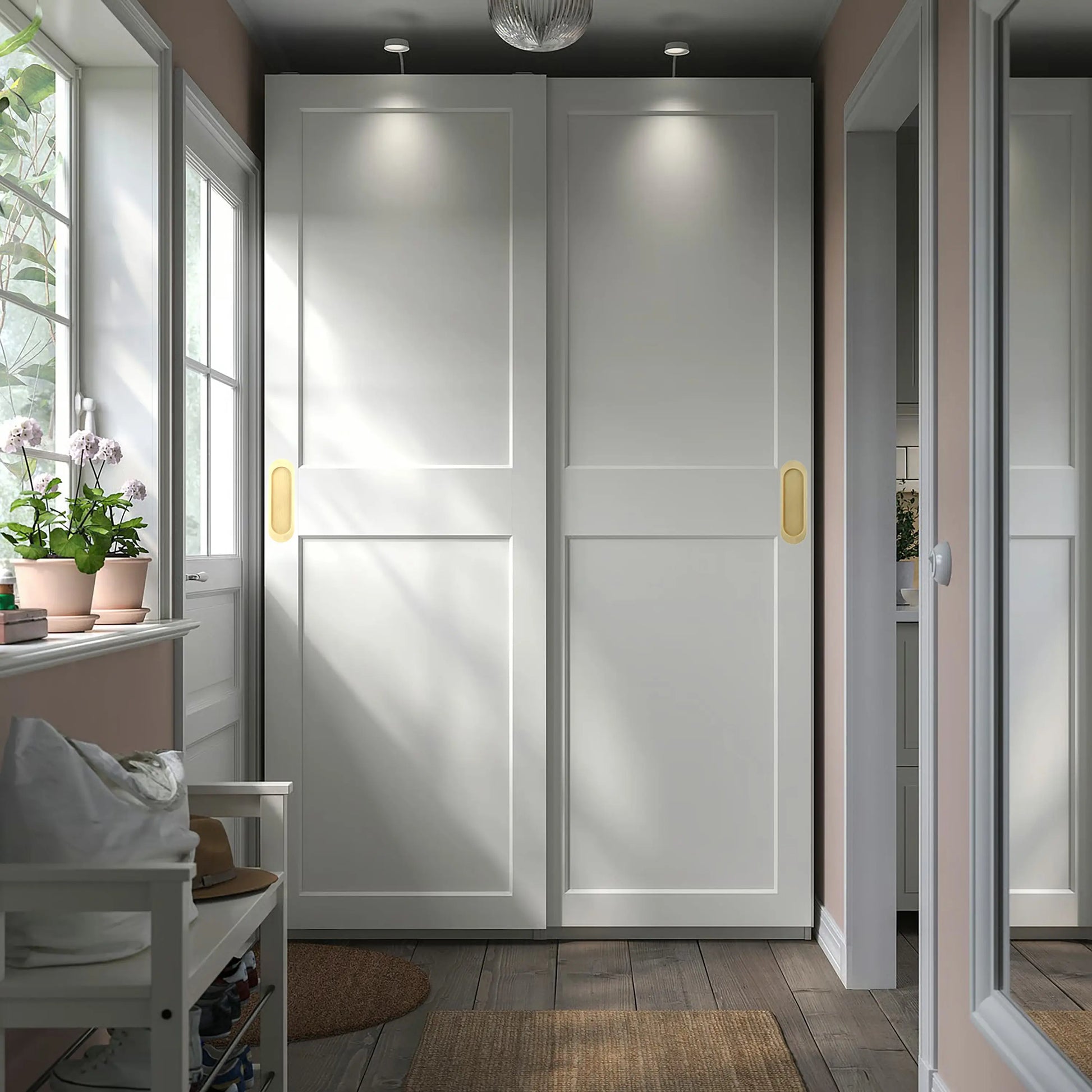

  • pocket door lock on the household
1 4

Zhongshan sunshine hardware Co.,Ltd

1802-PV-SN - Circular Rectangular Sliding Glass Door Lock with Satin Nickel

$186.00
$186.00
Sale Sold out
Shipping calculated at checkout.

The Luxurious American standard sliding glass door lock features a long rectangular lock plate with an embedded design and a brushed surface finish, showcasing refined craftsmanship and a premium modern style. The integrated 85×45mm lock body offers enhanced safety and long-term durability, ideal for both residential and commercial sliding doors. Its distinctive side pop-up buckle design provides a smooth and convenient locking experience without being restricted to a single pulling method, ensuring versatility and comfort for daily use. This brushed stainless steel sliding glass door lock is the perfect partner for patio doors, office partitions, and balcony sliding systems, combining elegance, practicality, and security.



Product Features
  • The satin nickel finish pocket door locks are made of high-quality zinc alloy, with a brushed surface finish.
  • Unique elliptical pocket door handle design.
  • Paired with a high-precision 60mm backset lock body.
  • Side-mounted pop-up hidden handle, controlled by the side button for ejection.
  • Available in a variety of functions for passage, privacy, or entry doors.
  • Cross-type double hook latch, stable and safe.
  • Support product customization.
  • Lifetime mechanical warranty.
Specifications
  • Door Thickness: 1-3/8"(35mm) to 1/3/4"(45mm).
  • Backset: 2-3/8"(60mm).
  • Deadbolt: 1“(25.4mm).
  • Bolt Projection: 5/8" (15.5mm).
  • Cylinder: Schlage C keyway, 5-pin mortise cylinder with 2 keys; specialty keying services available.
  • Applicable center spacing: 35/45mm.
  • Structure: Fully sealed lockbody structure, suitable for left or right door.
Function

Passage with Lockcase:

  • Both sides are controlled by the lockcase push and pull.
  • The edge finger pull is operated by a push button.

Privacy with Emergency Release:

  • The door bolt is operated by an internal knob and an external coin emergency release device.
  • The edge finger pull operated by push button.

Entry with Single Cylinder:

  • Key outside or thumbturn inside retracts the deadbolt with a hook
  • The edge finger pull is operated by the push button
Installation

The sliding door lock made of zinc alloy can be installed by oneself, which is safe and easy to install. Each product comes with an installation manual, allowing you to learn and install it to your heart's content.

Installation Instructions

What's inside
