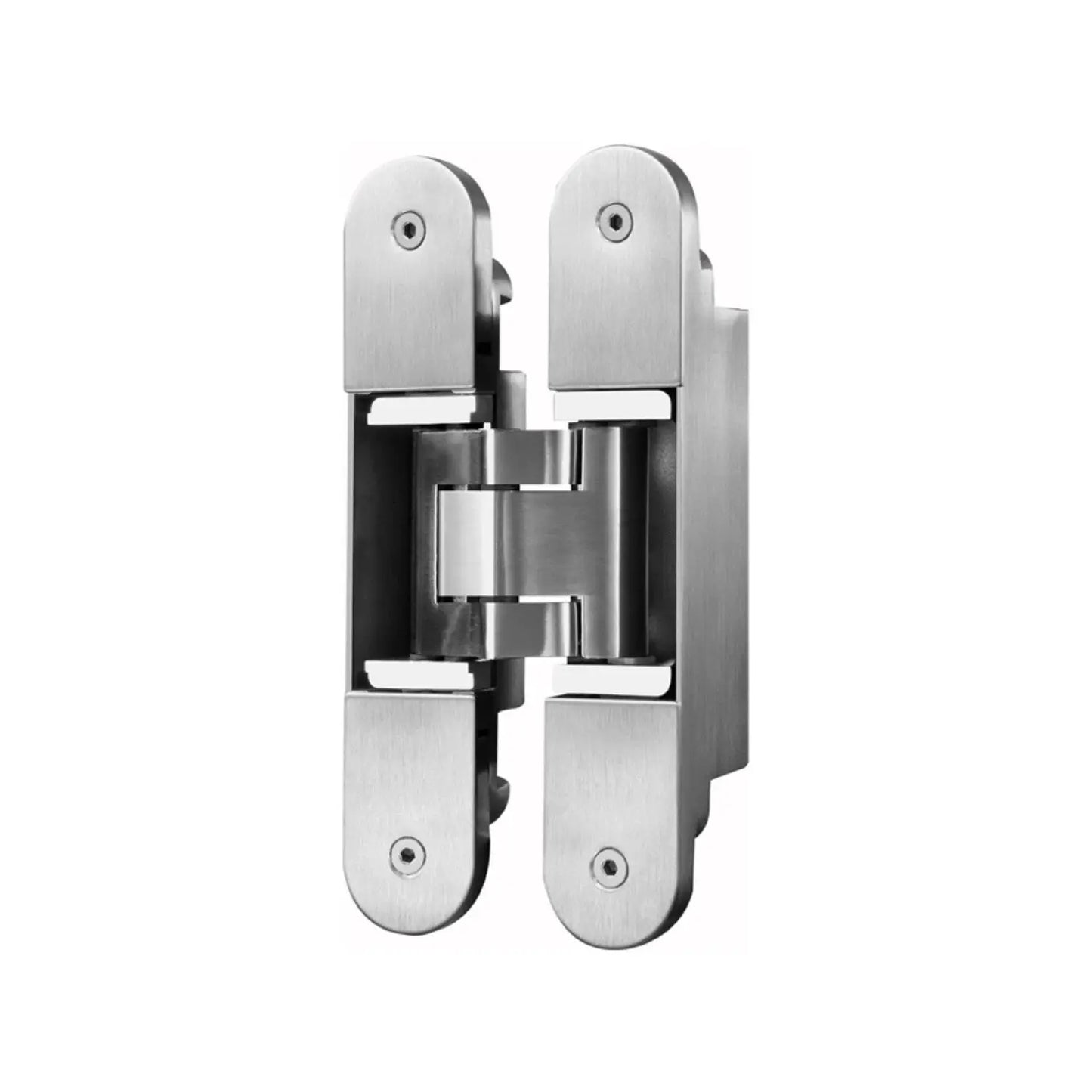

Introducing the GD120 3D Concealed Hinges, the perfect solution for heavy-duty doors weighing up to 120kg. This high-quality hinge is designed to provide smooth and reliable operation, making it ideal for commercial and industrial settings.

The GD120 3D Hinge features a 3-dimensional adjustment system, allowing for precise alignment and easy installation. Its durable construction and corrosion-resistant finish ensure long-lasting performance, even in harsh environments.

With a weight capacity of 120kg, this hinge can handle even the heaviest of doors with ease. Its sleek and modern design adds a touch of style to any door, while its sturdy build provides security and stability.

Upgrade your heavy-duty doors with the GD120 3D Hinge from Sunshine Hardware. Trust in its strength and reliability for all your commercial and industrial needs. Order now at our product URL and experience the difference for yourself.

Product Features

• The GD120 3D concealed hinge is made of high-quality stainless steel.
• Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 120kg.
• Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
• A clean and seamless look delivers stylish, modern design solutions.
• Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
• Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

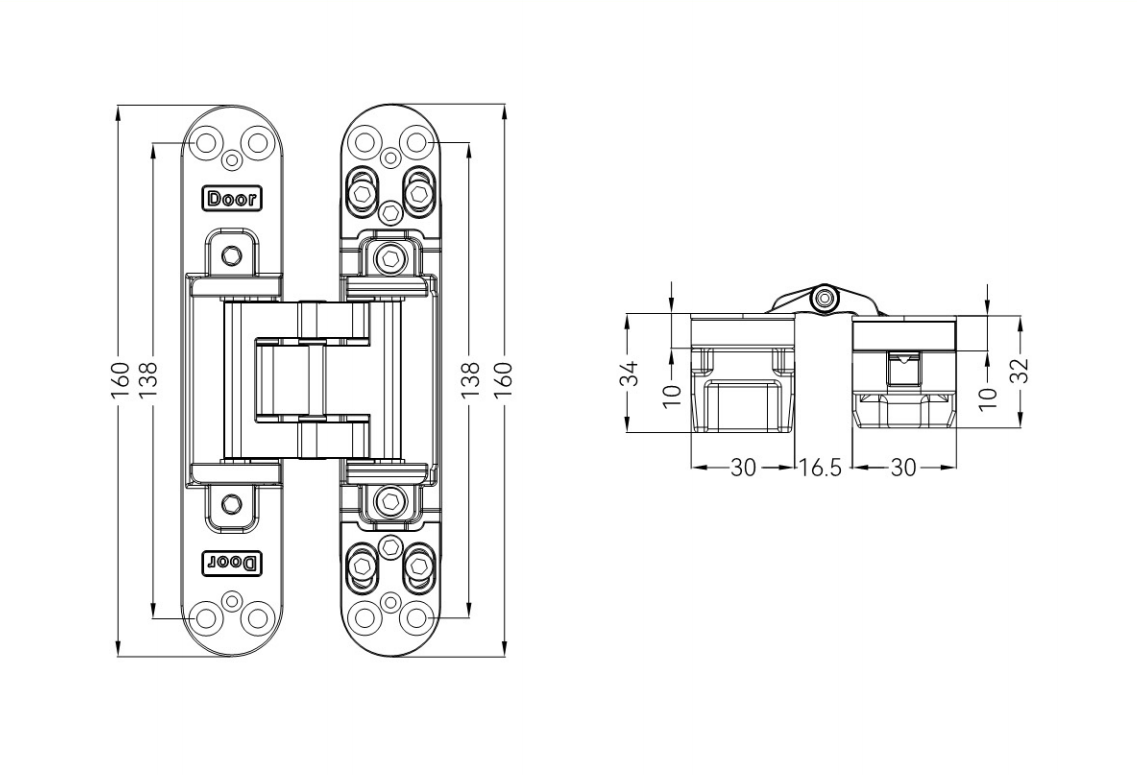

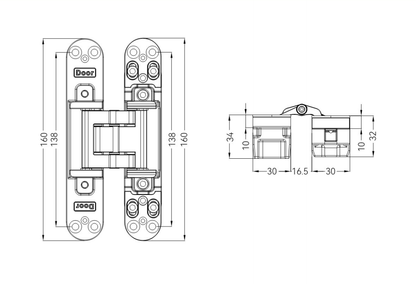

Specifications

• Material: Stainless Steel 304.
• Load Capacity: 120KG.
• Opening angle: ≤180°.
• Door Thickness: ≥40mm.
• Length: 160/160mm.
• Width: 30/30mm.
• Up and down adjustment: ± 3 mm.
• Left and right adjustment: + 3.5 / -2.0 mm.
• Before and after adjustment: ± 1.0 mm.

Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.

What's inside
