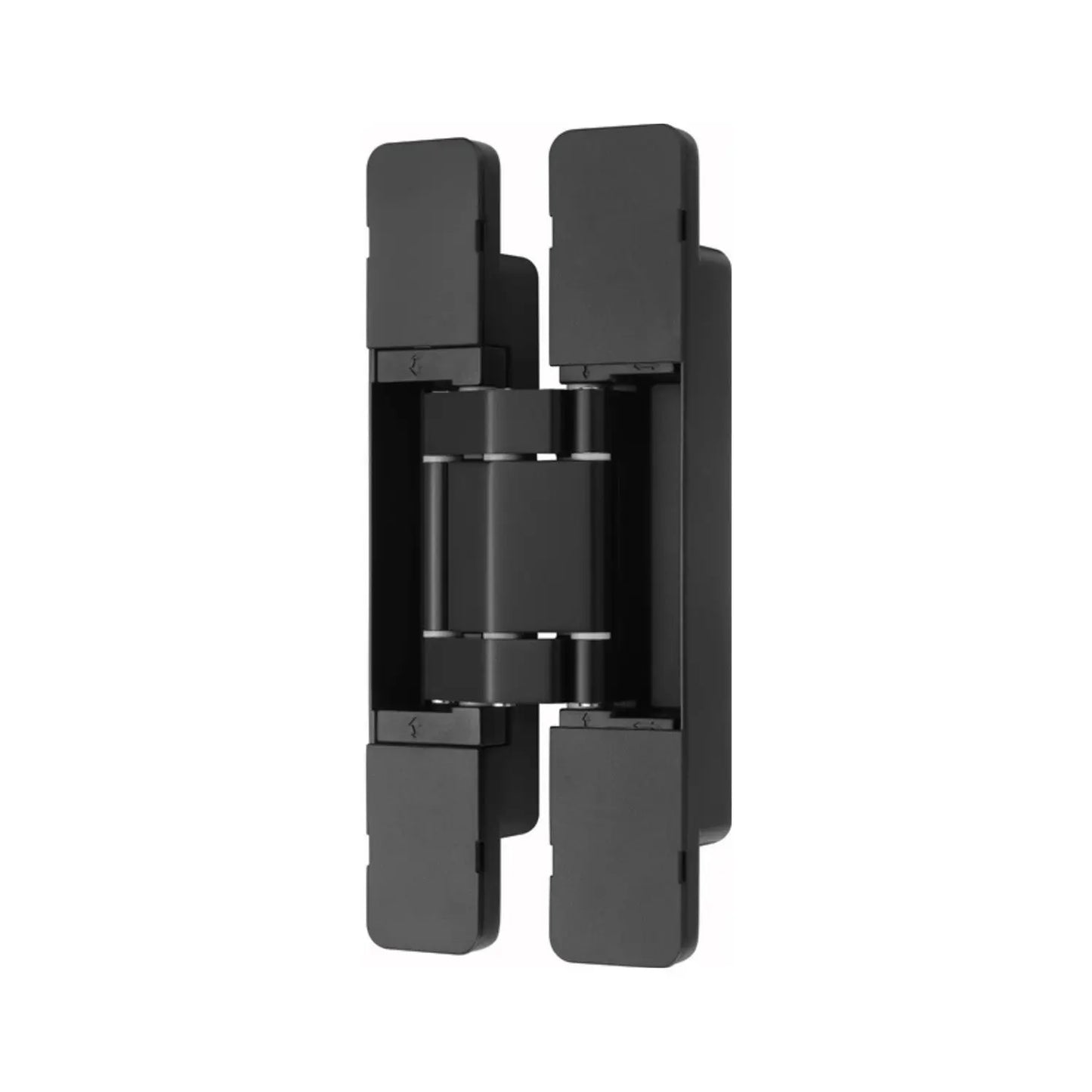

GE100 - 3D Concealed Door Hinges - 100kg
Explore the Benefits of 3D Concealed Door Hinges-GE100
Introducing the GE100 3D Concealed Door Hinges, the perfect solution for heavy-duty doors weighing up to 100kg. This high-quality hinge is designed to provide smooth and reliable operation for years to come. Made with durable materials, it can withstand heavy use and is suitable for both residential and commercial applications.
The 3D design allows for easy installation and adjustment, ensuring a perfect fit every time. The hinge also features a 100kg weight capacity, making it ideal for large and heavy doors. Its sleek and modern design adds a touch of elegance to any door, while its sturdy construction ensures maximum security and stability.
Upgrade your door with the GE100 3D Hinge and experience the ultimate combination of functionality and style. Order now and enjoy hassle-free installation and long-lasting performance. Trust Sunshine Hardware for all your hardware needs.
If you have any questions, please click on the chat box in the bottom right corner to contact us, and I hope you can leave your contact information so that we won't be unable to find you. Alternatively, you can click on the link below to contact us.
Chat with us
Require quote
Contact us
Address: Room 1205, Qingfeng Deyuan Building, No. 3 Zhongshan 6th Road, East District, Zhongshan City, Guangdong Province, China.
Phone: +86 13726110546
WhatsApp: +852 69547368
Email:
beyondxu@sunshine-hardware.com
Business Hours: Monday - Saturday: 9:00 AM - 6:00 PM
3D Hinge
Product Feature
- The 3D hidden hinge is made of high-quality zinc alloy.
- Ultra high load-bearing capacity, with individual 3D hinges of different specifications having a load-bearing capacity of 40kg-200kg.
- The powerful adaptability range provides smooth door movement and a maximum opening angle of 180 degrees.
- A clean, seamless and tidy appearance can create fashionable and modern design solutions.
- Widely applicable to doors larger than 35mm.
- Not confined to one style, a good partner for cabinets, doors, and wardrobes.
3D Hinge

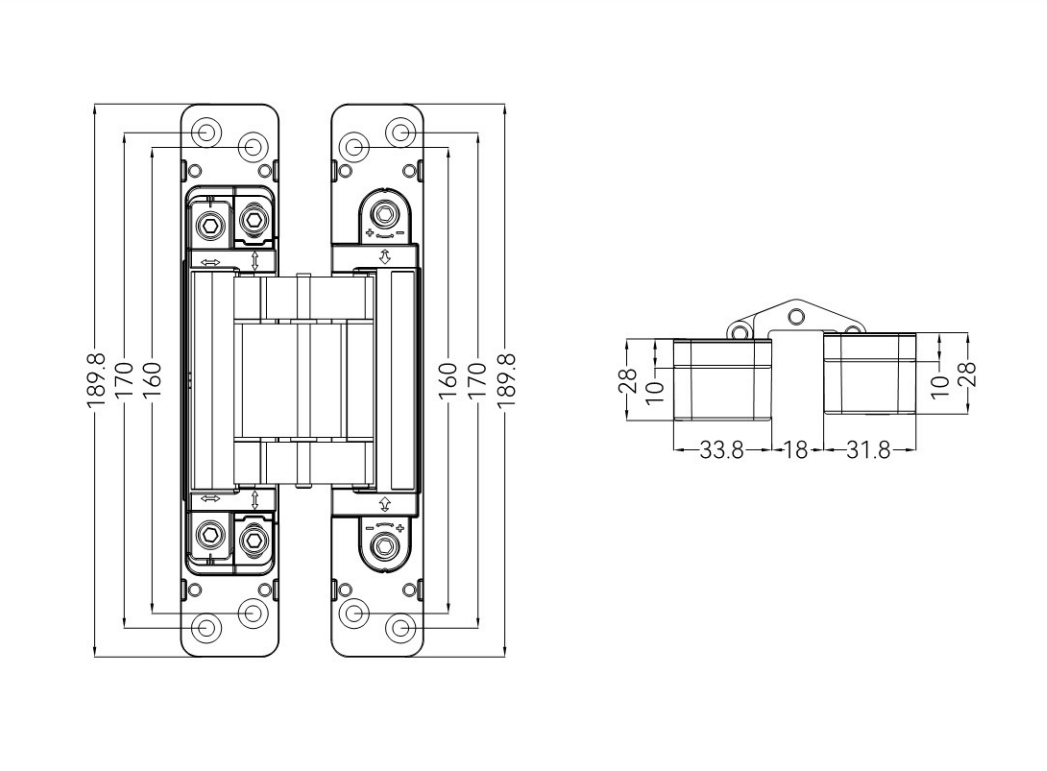

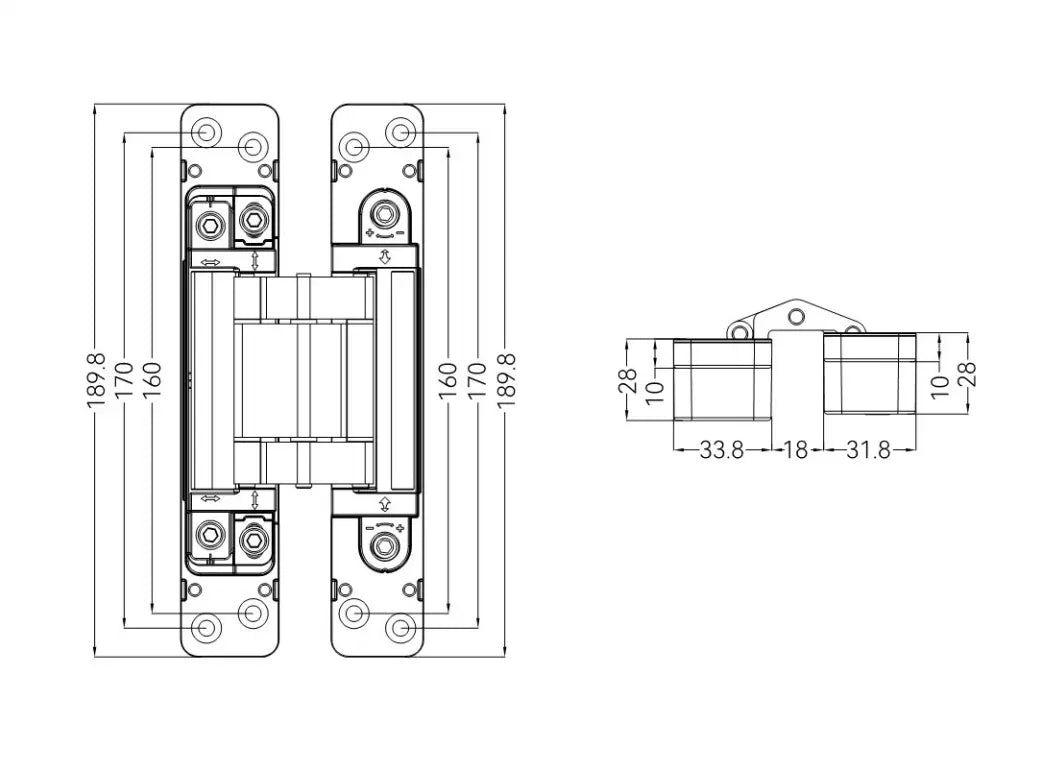

Specification
- Matrial: ZInc Alloy.
- Load Capacity: 100 kg.
- Opening angle: ≤180°.
- Door Thickness: ≥40mm.
- Length: 189.8/189.8mm.
- Width: 33.8/31.8mm.
- Up and down adjustment: ± 3.0 mm.
- Left and right adjustment: ± 1.5 mm.
- Beforeand after adjustment: ± 1.0 mm.
