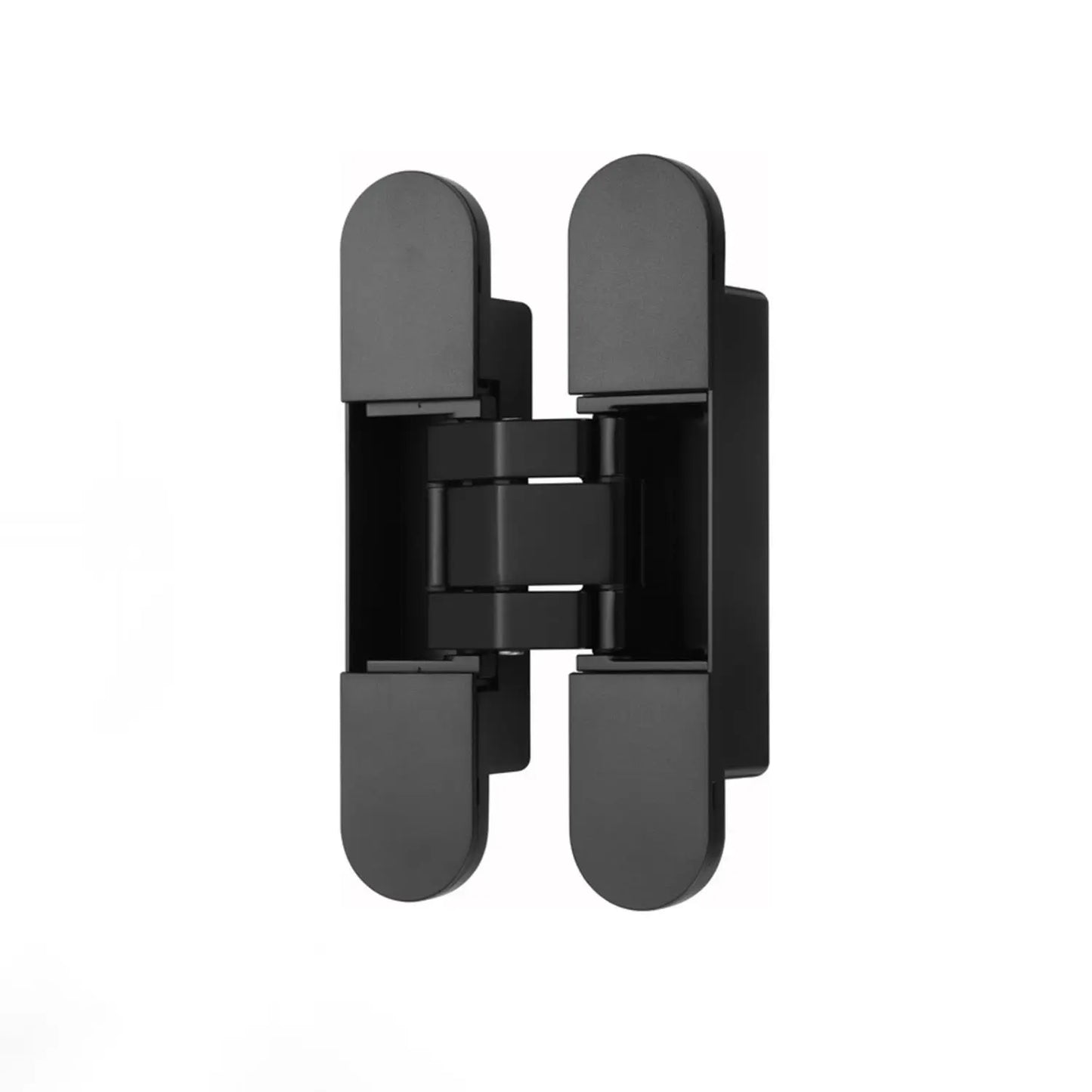

GE60 - 3D Concealed Hinges - 60kg

At Sunshine Hardware, we pride ourselves on providing high-quality products at affordable prices. Our GE60 3D Concealed Hinges are no exception. This heavy-duty hinge is capable of supporting up to 60kg of weight, making it perfect for use on doors, cabinets, and other furniture pieces. Its 3D design allows for smooth and precise movement, ensuring that your doors open and close seamlessly. Made from durable materials, this hinge is built to last and withstand daily use. And the best part? It's available at an unbeatable price. Don't sacrifice quality for cost - get the GE60 3D Hinge from Sunshine Hardware today.

Product Features
  • The GE60 3D concealed hinge is made of high-quality zinc alloy.
  • Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 60kg.
  • Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
  • A clean and seamless look delivers stylish, modern design solutions.
  • Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
  • Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

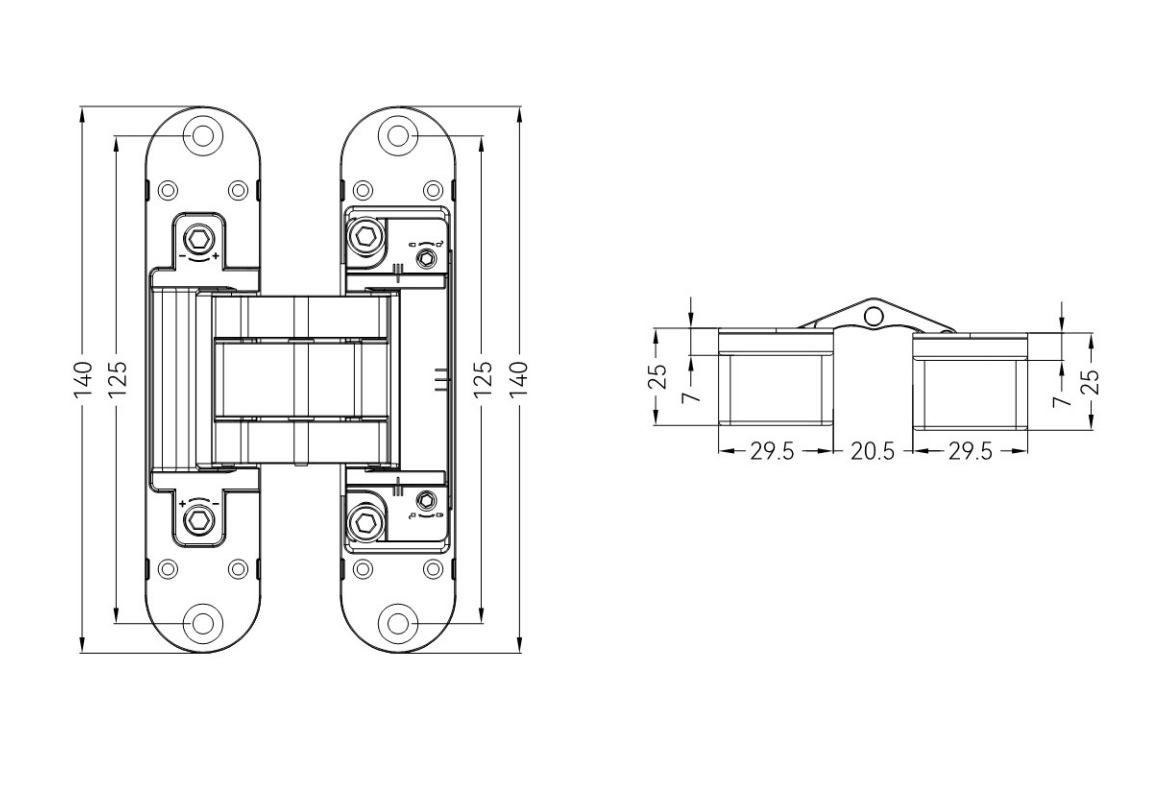

Specifications
  • Material: Zinc Alloy.
  • Load Capacity: 60 kg.
  • Opening angle: ≤180°.
  • Door Thickness: ≥40mm.
  • Length: 140/140mm.
  • Width: 29.5/29.5mm.
  • Up and down adjustment: ± 2.5 mm.
  • Left and right adjustment: ± 1.5 mm.
  • Before and after adjustment: ± 1.0 mm.
Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
