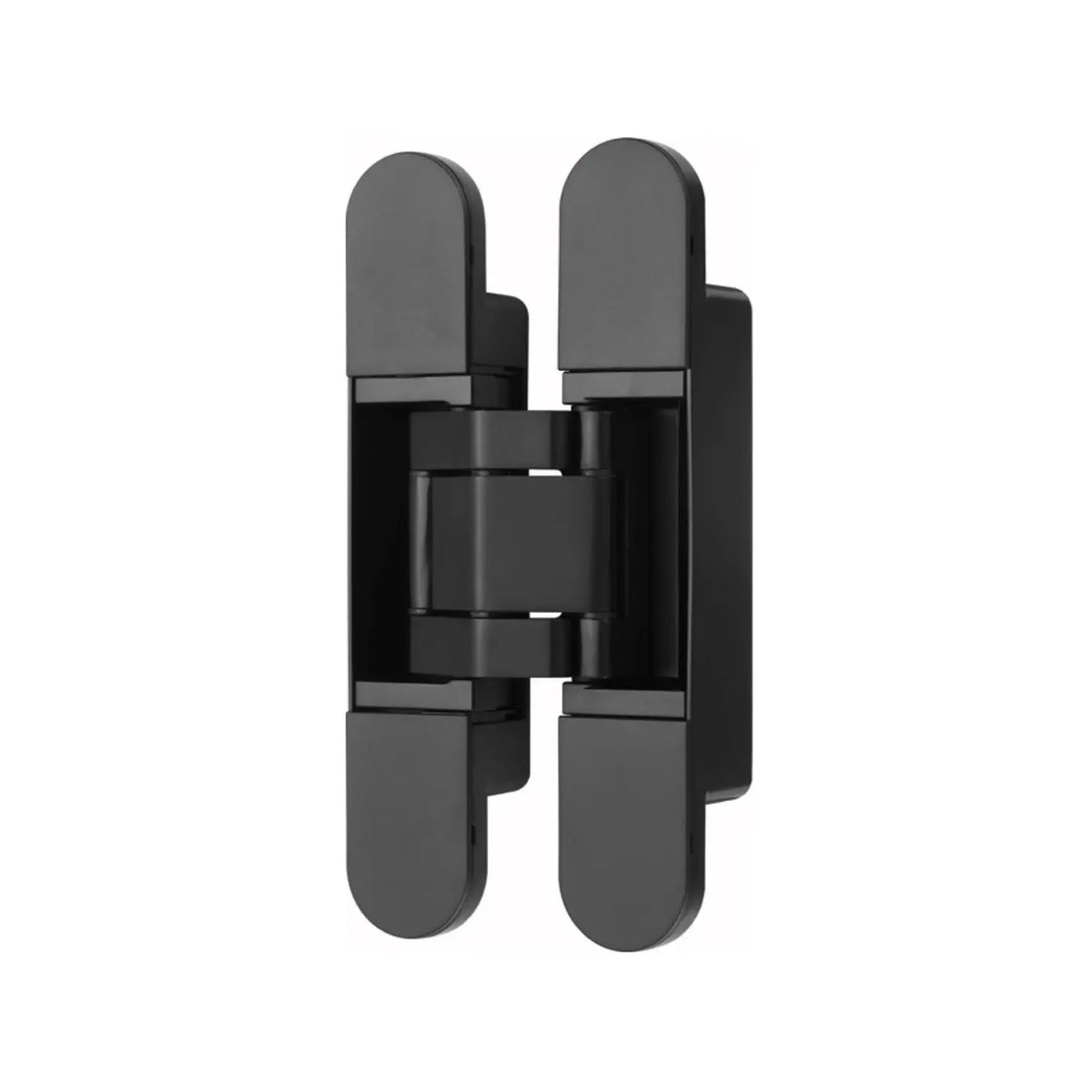

GE80 - 3D Concealed Hinges - 80kg

Introducing the GE80 3D Concealed Hinges, the perfect solution for heavy doors weighing up to 80kg. This high-quality hinge is designed to provide smooth and reliable operation, making it ideal for both residential and commercial use.

The GE80 3D Hinge features a 3-dimensional adjustment system, allowing for precise alignment and easy installation. Its durable construction ensures long-lasting performance, even with frequent use. Plus, its sleek design adds a modern touch to any door.

But the best part? The GE80 3D Hinge is available at an unbeatable price at Sunshine Hardware. Don't miss out on this amazing deal and upgrade your doors today with the GE80 3D Hinge - 80kg.

Product Features
  • The GE80 3D concealed hinge is made of high-quality zinc alloy.
  • Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 80kg.
  • Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
  • A clean and seamless look delivers stylish, modern design solutions.
  • Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
  • Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

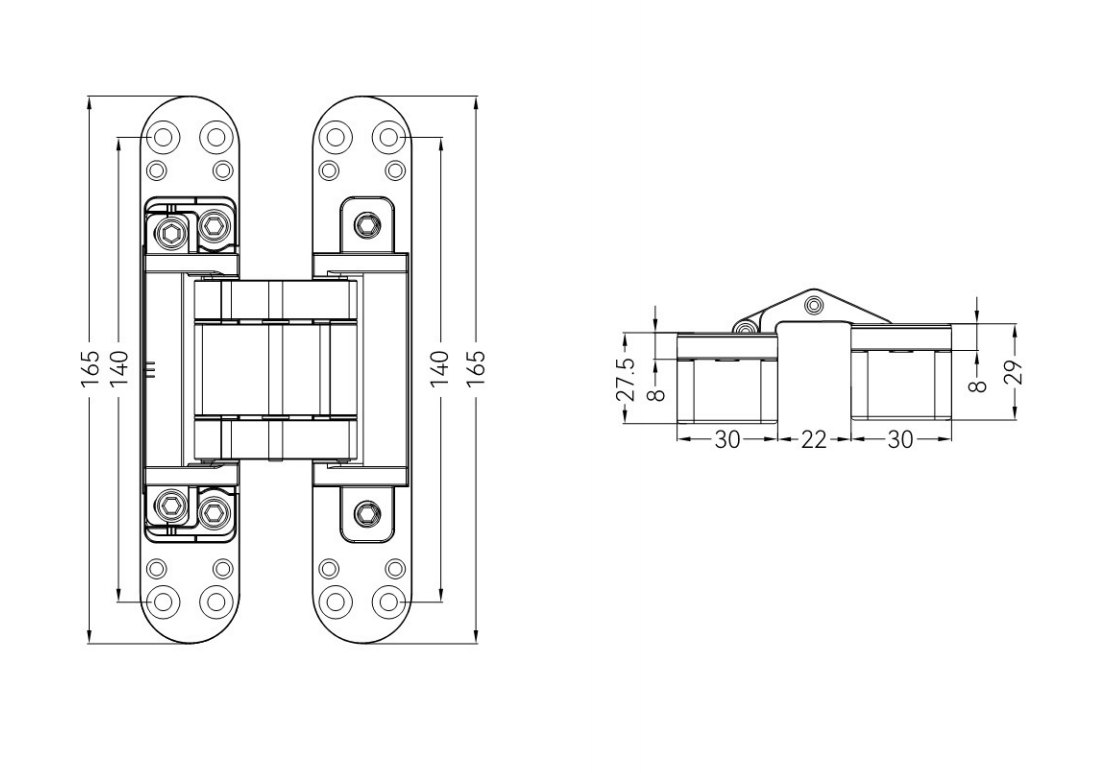

Specifications
  • Material: Zinc Alloy.
  • Load Capacity: 80 kg.
  • Opening angle: ≤180°.
  • Door Thickness: ≥40mm.
  • Length: 165/165mm.
  • Width: 30/30mm.
  • Up and down adjustment: ± 2.0 mm.
  • Left and right adjustment: ± 3 mm.
  • Before and after adjustment: ± 1.0 mm.
Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
