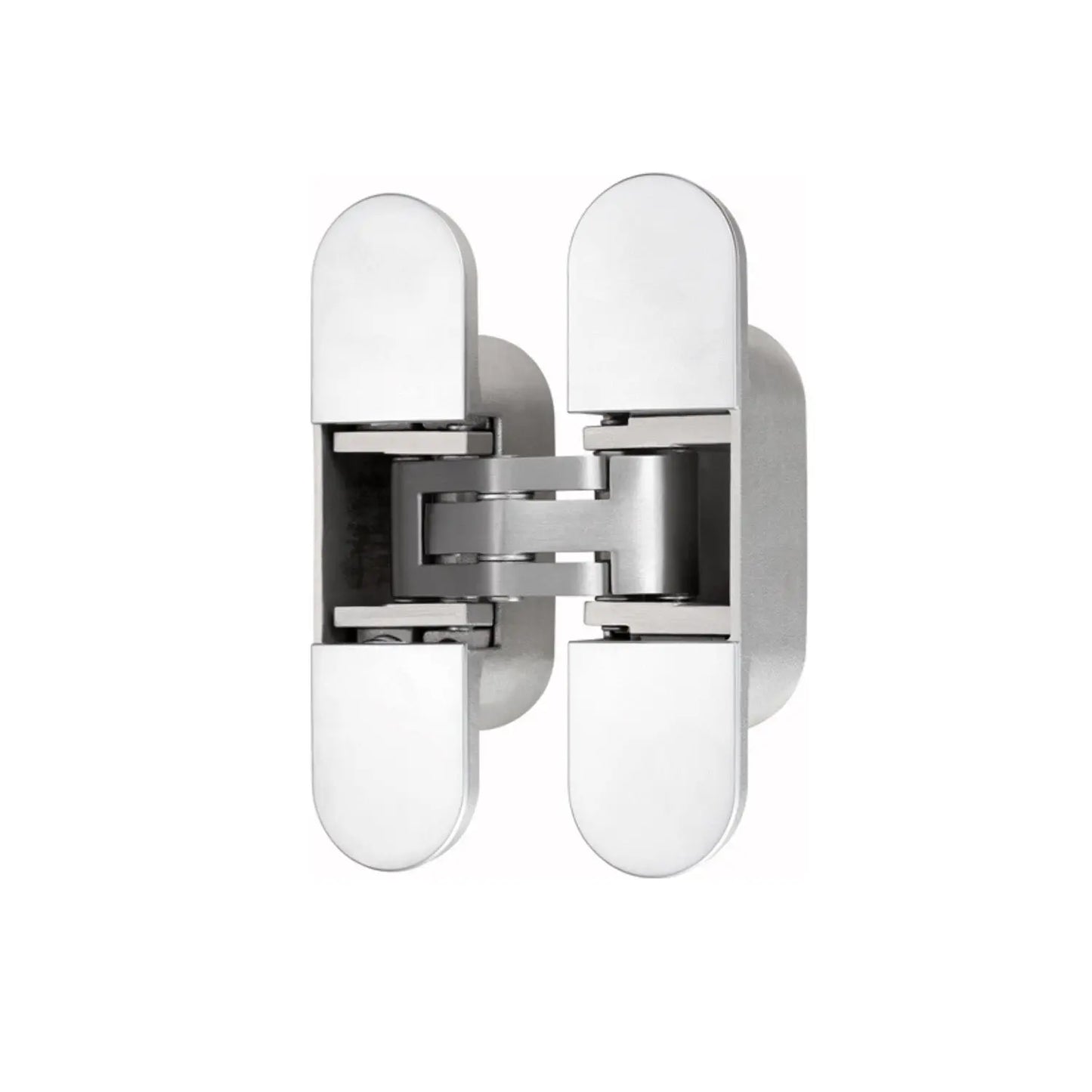

Introducing the GH110 3D Concealed Hinges, the perfect solution for heavy-duty doors weighing up to 100kg. This high-quality hinge is designed to provide smooth and reliable operation, making it ideal for commercial and industrial settings. Made from durable materials, the GH110 3D Hinge is built to withstand heavy use and is suitable for interior and exterior doors.

The 3D design of this hinge allows for easy installation and adjustment, ensuring a perfect fit for your door. Its sleek and modern appearance adds a touch of style to any door, while its sturdy construction guarantees long-lasting performance. With a weight capacity of 100kg, the GH110 3D Hinge is a reliable and practical choice for heavy doors.

Upgrade your door hardware with the GH110 3D Hinge from Sunshine Hardware. Order now and experience the convenience and durability of this top-of-the-line hinge. This hinge is a must-have for any heavy door, perfect for commercial and industrial use. Don't settle for less; choose the GH110 3D Hinge for your door today.

Product Features

• The GH110 3D concealed hinge is made of high-quality stainless steel.
• Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 100kg.
• Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
• A clean and seamless look delivers stylish, modern design solutions.
• Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
• Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

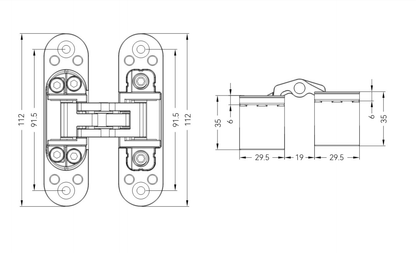

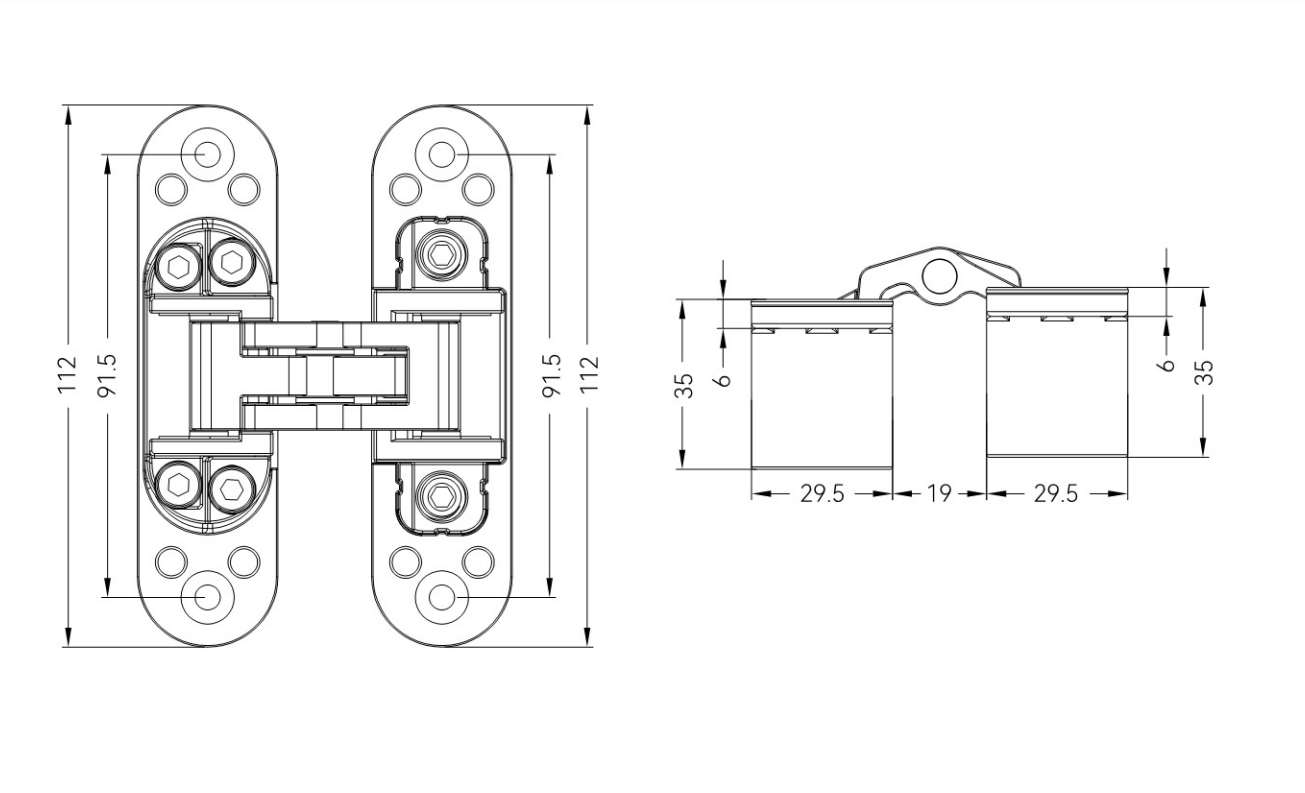

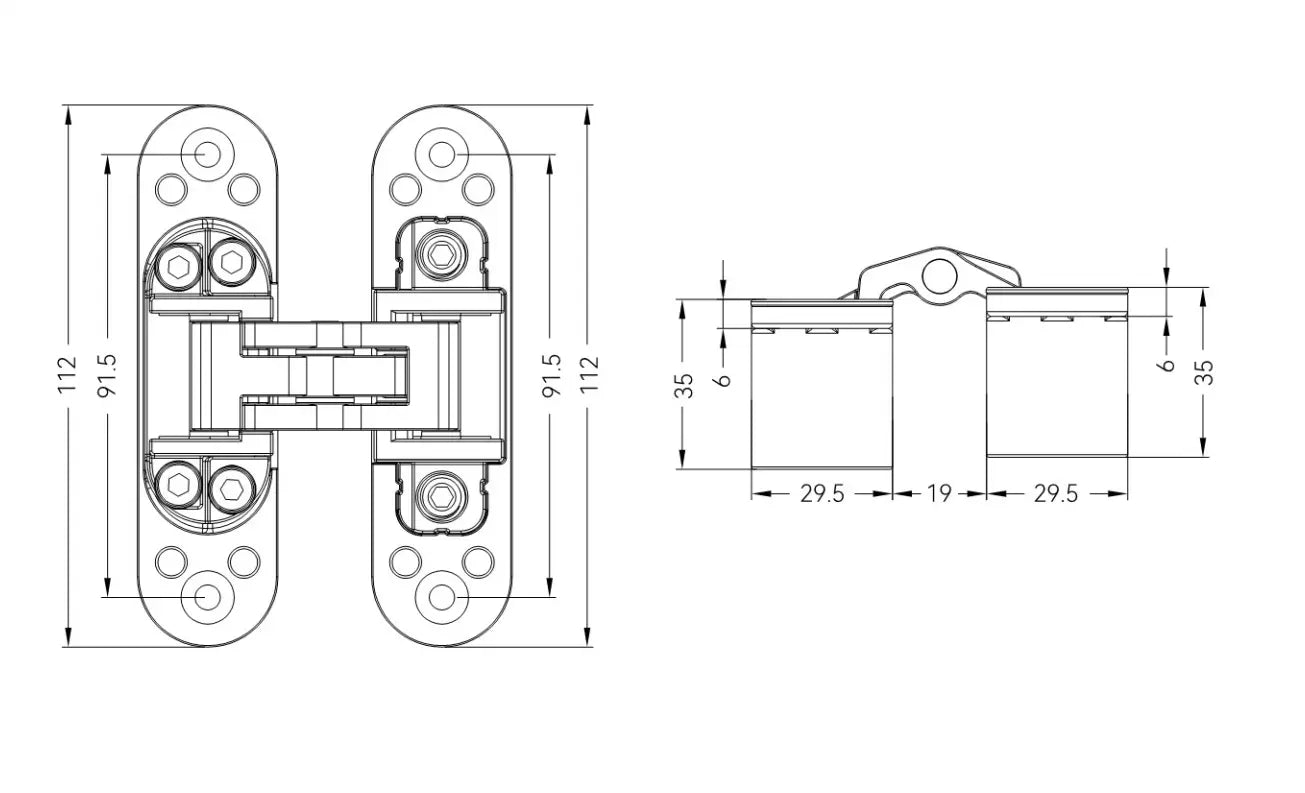

Specifications

• Material: Stainless Steel 304.
• Load Capacity: 100kg.
• Opening angle: ≤180°.
• Door Thickness: ≥40mm.
• Length: 112/112mm.
• Width: 29.5/29.5mm.
• Up and down adjustment: ± 2 mm.
• Left and right adjustment: ± 2.5 mm.
• Before and after adjustment: ± 1.0 mm.

Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.

What's inside
