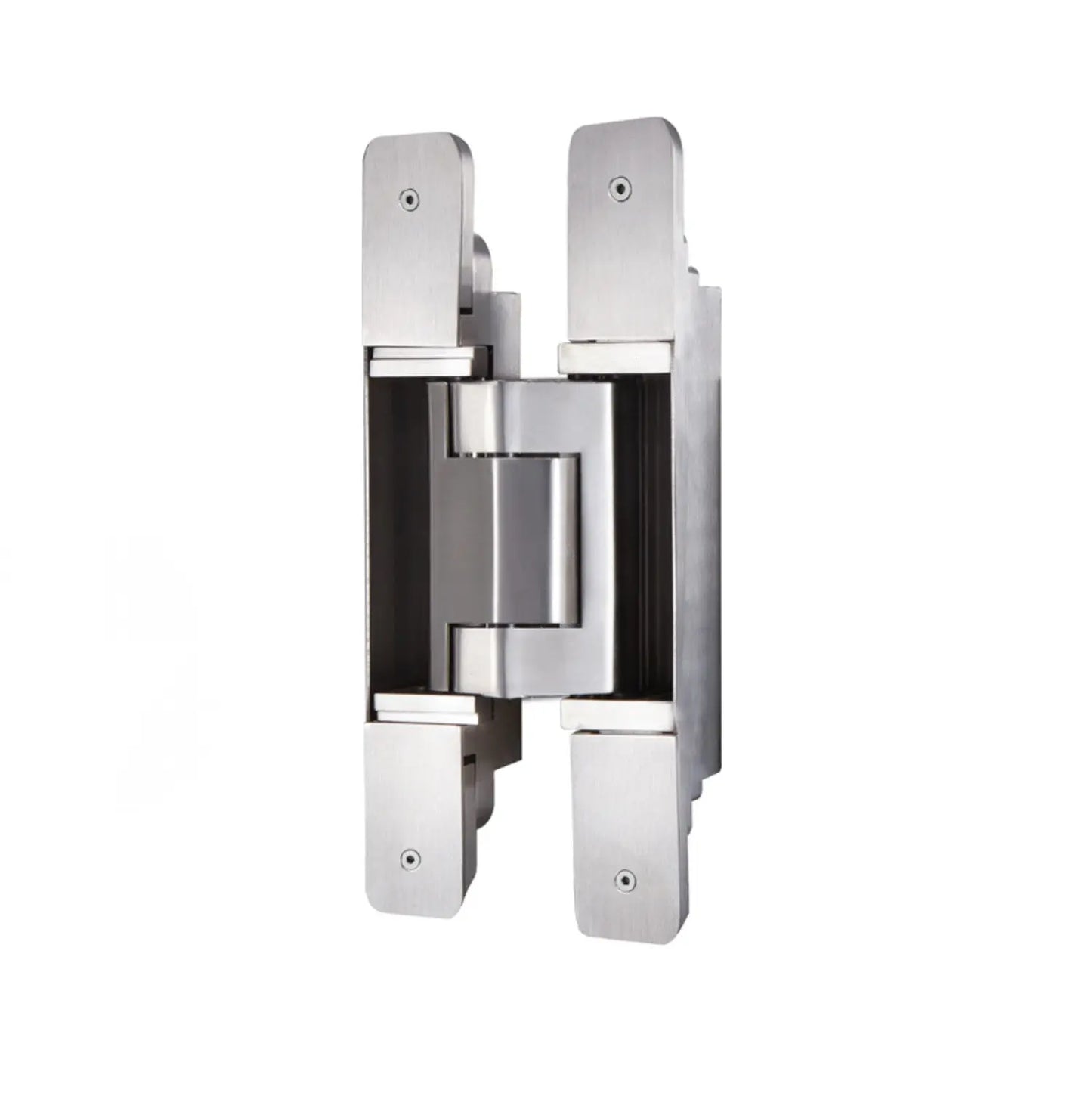

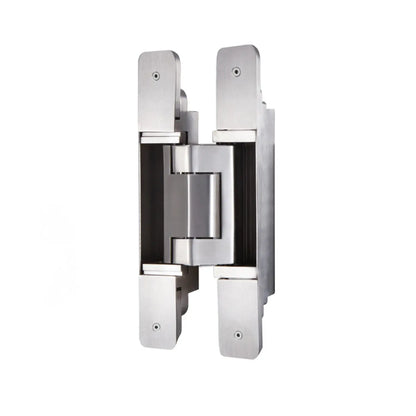

HS200 - 3D Concealed Hinges - 200kg

The HS200 3D concealed hinges are a heavy-duty hinge designed for doors weighing up to 200kg. It is perfect for use in commercial and industrial settings where durability and strength are essential. Made from high-quality materials, this hinge is built to last and withstand heavy use. Its 3D design allows for smooth and precise movement, ensuring that your doors open and close seamlessly. The HS200 3D Hinge is easy to install and can be used on both left and right-handed doors. Upgrade your door hardware with this reliable and sturdy hinge from Sunshine Hardware.

Product Features
  • The HS200 3D concealed hinge is made of high-quality stainless steel.
  • Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 200kg.
  • Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
  • A clean and seamless look delivers stylish, modern design solutions.
  • Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
  • Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

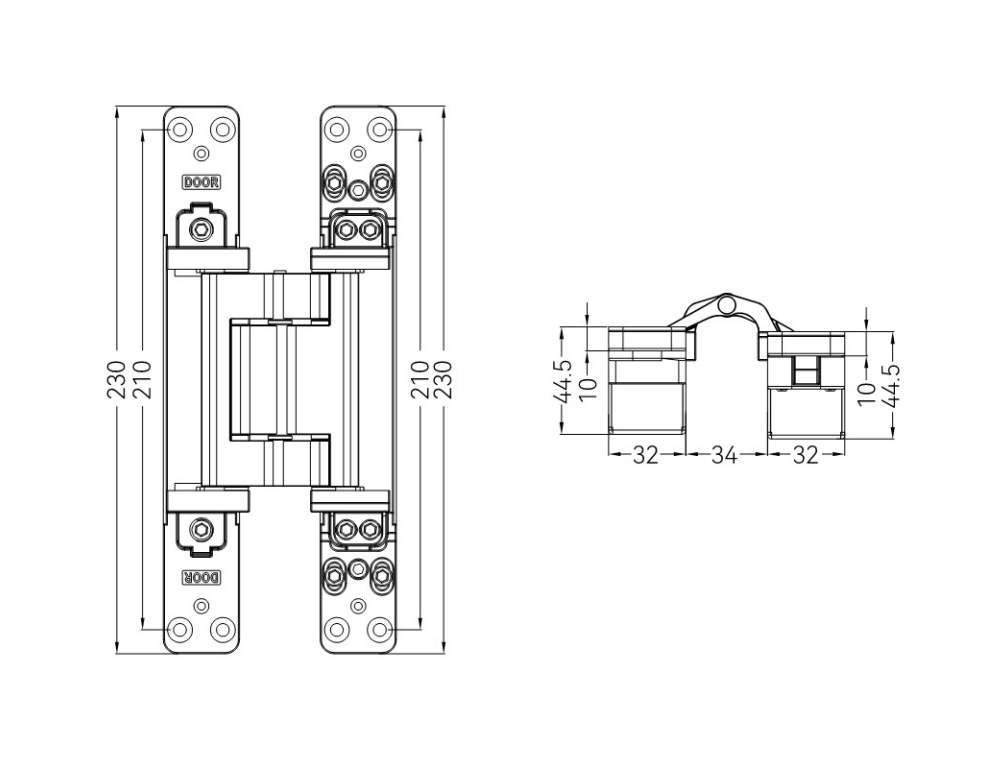

Specifications
  • Material: Stainless Steel 304.
  • Load Capacity: 200kg.
  • Opening angle: ≤180°.
  • Door Thickness: ≥45mm.
  • Length: 230/230mm.
  • Width: 32/32mm.
  • Up and down adjustment: ± 3 mm.
  • Left and right adjustment: ± 3 mm.
  • Before and after adjustment: ± 1.0 mm.
Installation

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
