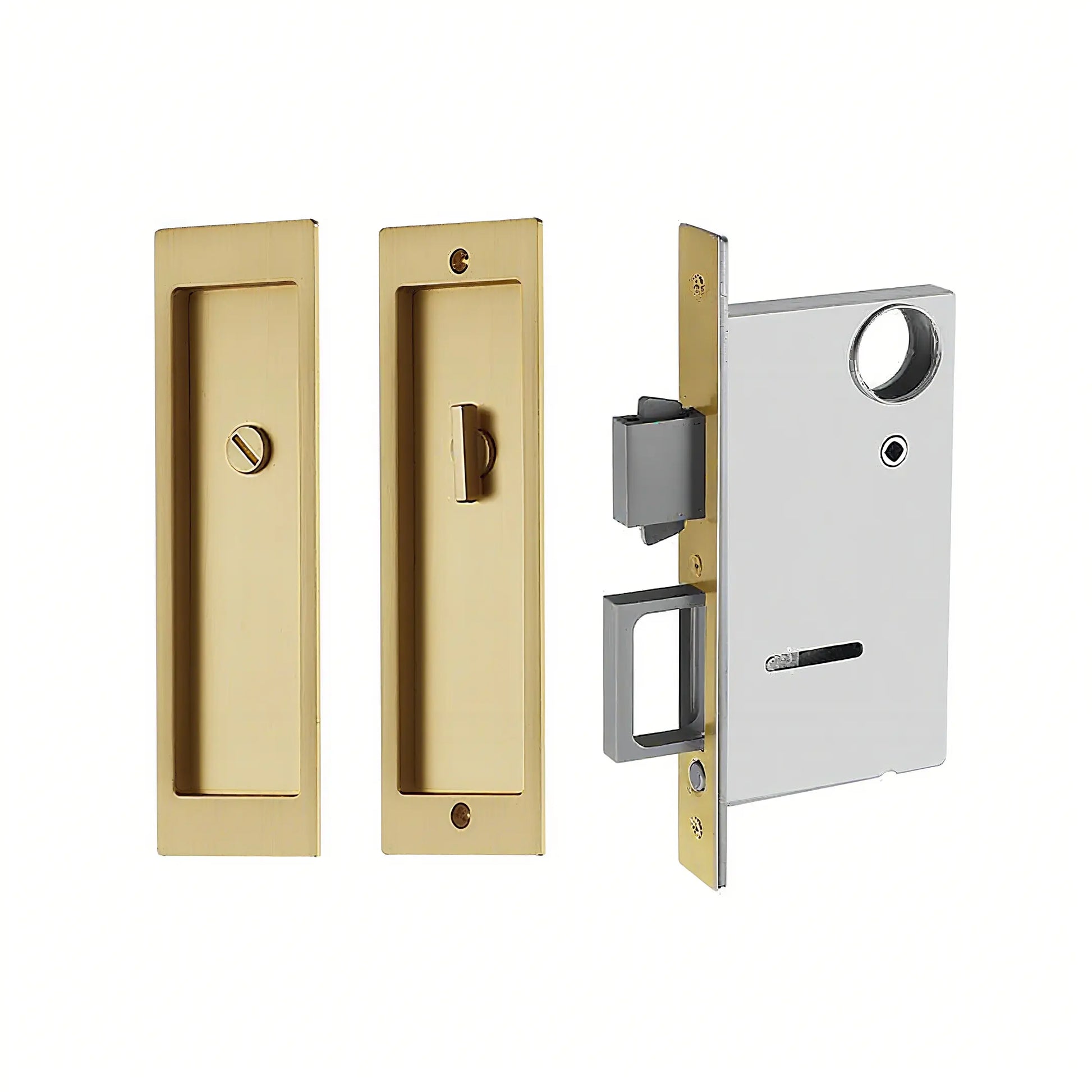

1801 - Rectangular Pocket Door Lock Kit with Satin Brass
1801 - Rectangular Pocket Door Lock Kit with Satin Brass
Modern Design: The pocket door lock is designed with a sleek gold finish and durable zinc alloy.
Durable and Aesthetic: The electroplated exterior enhances the lock’s durability and appearance.
Suitable for Privacy Doors: Ideal for bathroom doors with a 35-45mm thickness.
Convenient Installation and Use: Features a built-in lock body for easy installation, hidden door handles to prevent collisions, and emergency unlocking with a small knob.
Side Buckle: The small button on the side pops up the side buckle and serves as a buckle ring.
If you have any questions, please click on the chat box in the bottom right corner to contact us, and I hope you can leave your contact information so that we won't be unable to find you. Alternatively, you can click on the link below to contact us.
Chat with us
Require quote
Contact us
Address: Unit 1205, Tianyi Business Center, No. 1 Zhongshan 6th Road, Dongqu Street, Zhongshan District, Yau Tsim Mong District, New Territories, Hong Kong SAR
Phone: +86 13726110546
Email:
beyondxu@sunshine-hardware.com
Business Hours: Monday - Saturday: 9:00 AM - 6:00 PM
Pocket Door locks

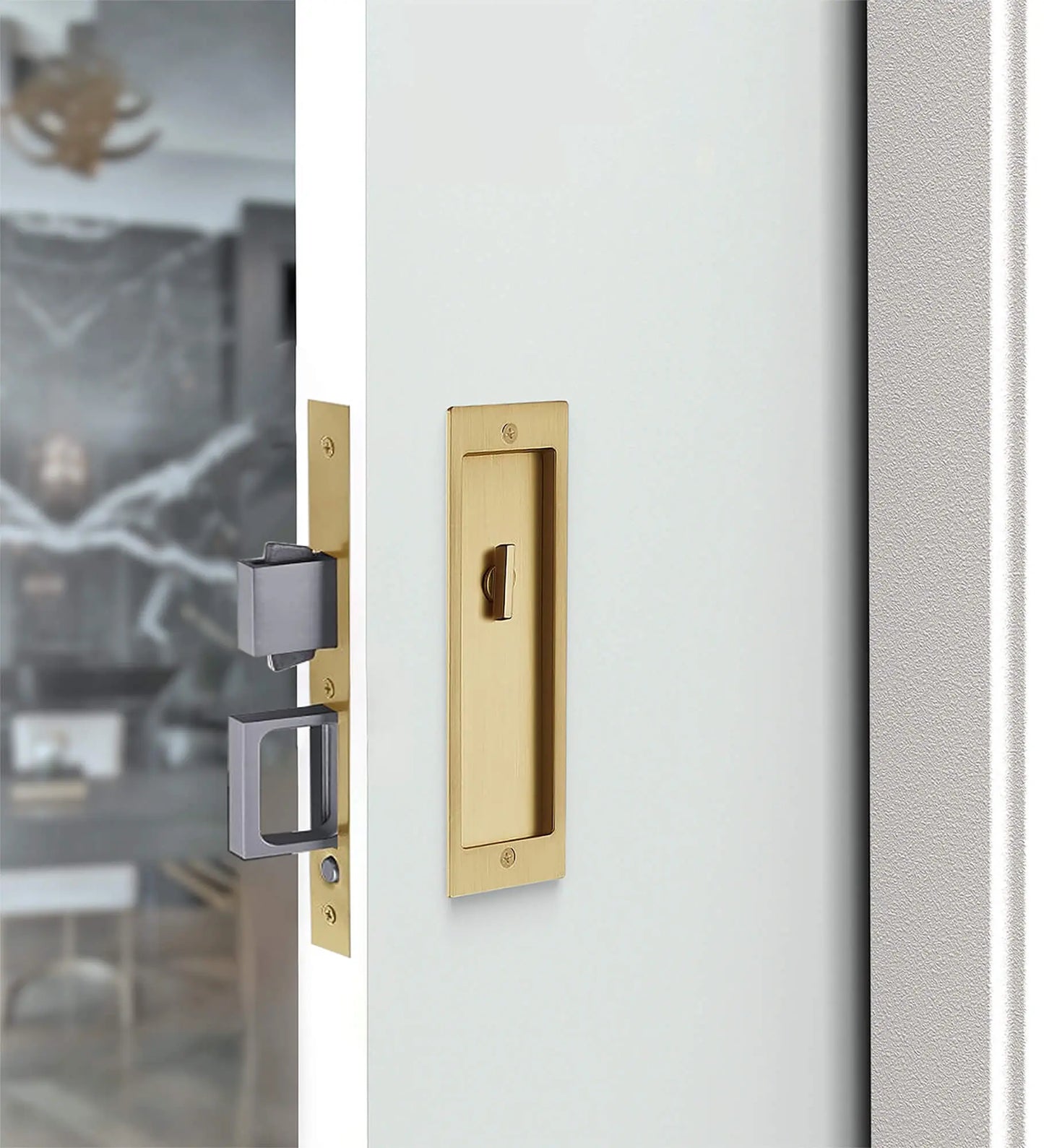

Product Feature
- Pocket door locks made of high-quality zinc alloy, with brushed surface finish.
- Paired with high-precision lock body.
- Side mounted pop-up hidden handle, controlled by the side button for ejection.
- Available in a variety of functions for passage, privacy or entry doors.
- Cross type double hook latch, stable and safe.
- Support product customization.
- Lifetime mechanical warranty.
Pocket door locks
Specifications
- Door Thickness: 1-3/8"(35mm) to 1/3/4"(45mm).
- Backset: 2-3/8"(60mm), 2-3/4"(70mm).
- Deadbolt: 1“(25.4mm).
- Bolt Projection: 5/8" (15.5mm).
- Cylinder: Schlage C keyway, 5 pin mortise cylinder with 2 keys; specialty keying services available.
- Applicable center spacing: 35/45mm.
- Structure: Fully sealed lockbody structre, suitablefor left or rightdoor.
Pocket door locks
Function
Passage with Lockcase:
- Both sides are controlled by lockcase push and pull.
- Edge finger pull operated by push button.
Privacy with Emergency Release:
- The door bolt is operated by an internal knob and an external coin emergency release device.
- Edge finger pull operated by push button.
Entry with Single Cylinder:
- Key outside or thumbturn inside retracts deadbolt with hook
- Edge finger pull operated by push button
Sliding door locks
Installation Process
The sliding door lock made of zinc alloy can be installed by oneself, which is safe and easy to install. Each product comes with an installation manual, allowing you to learn and install it to your heart's content.
