Sliding Glass Door Lock | Rectangular | Satin Brass
Sliding Glass Door Lock | Rectangular | Satin Brass
In stock
Couldn't load pickup availability

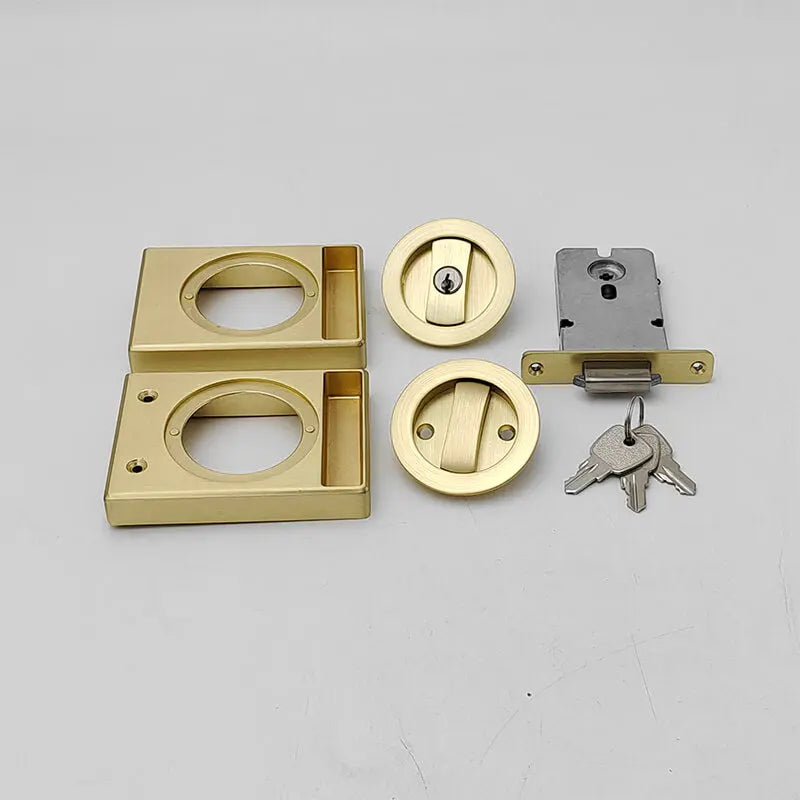

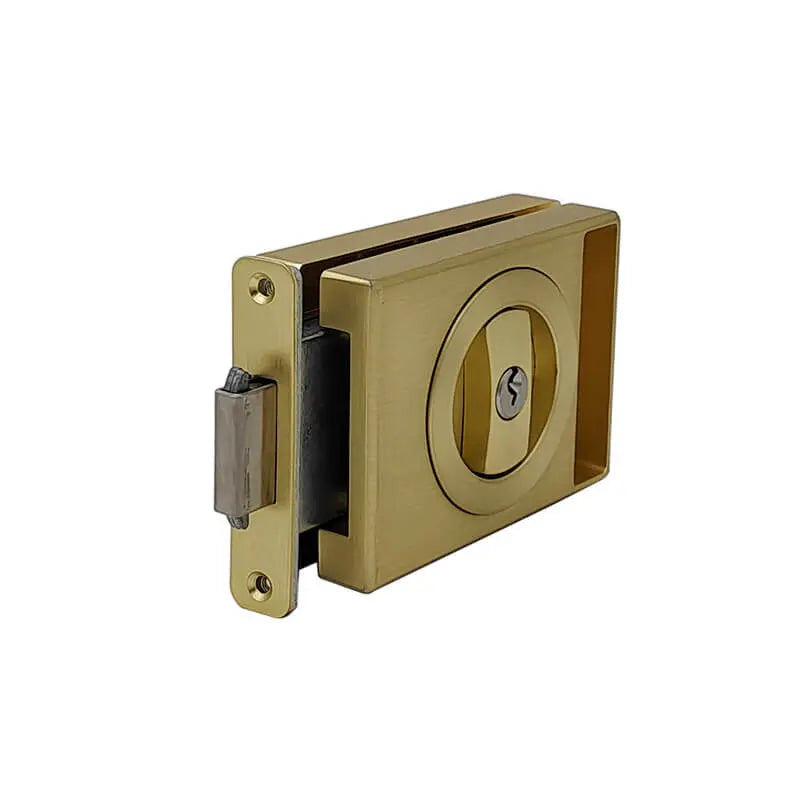

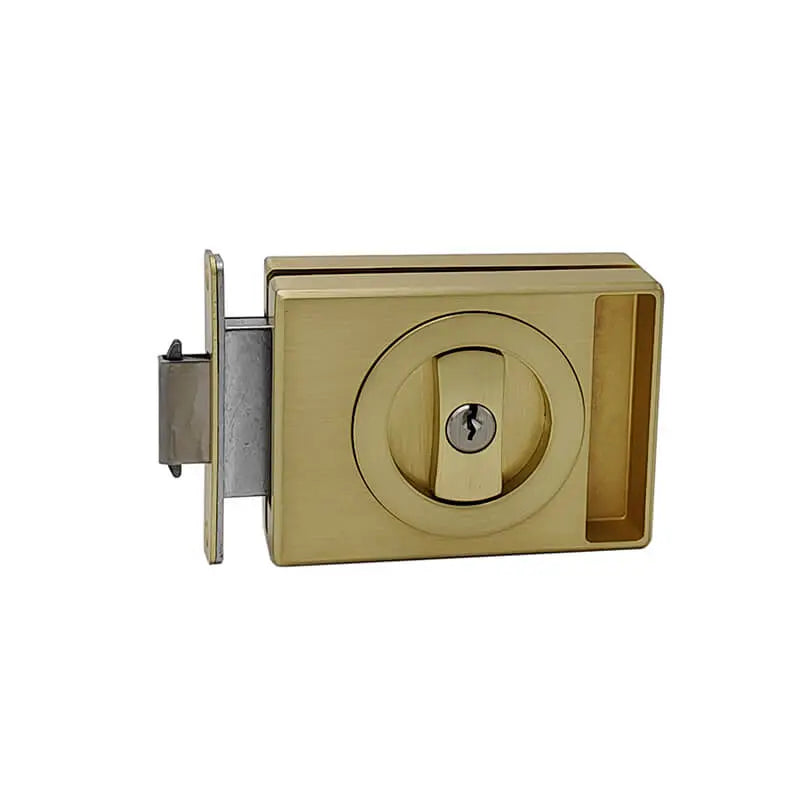

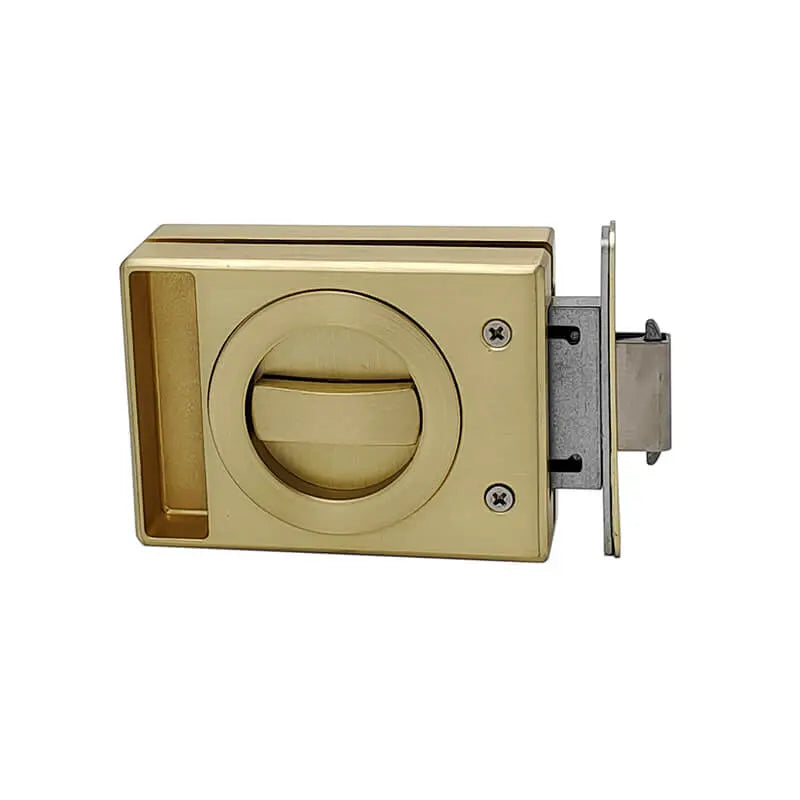

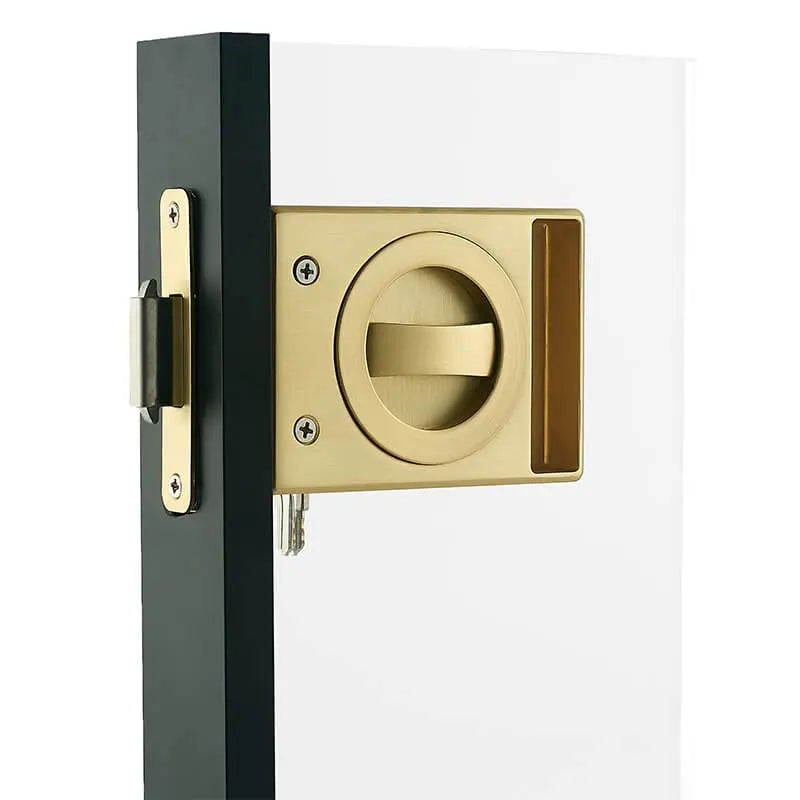

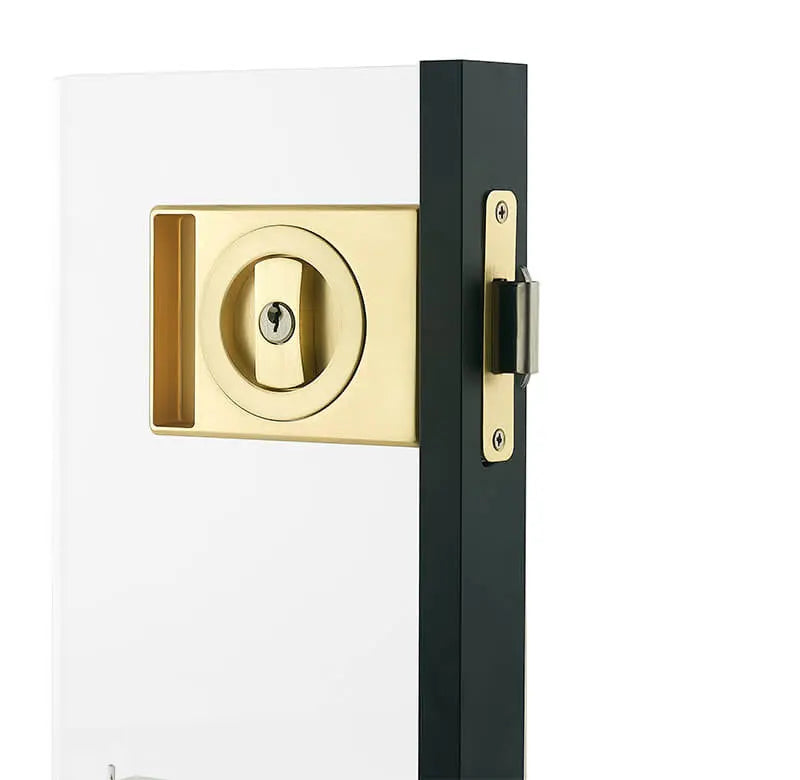

This sliding glass door lock adopts a modern minimalist style, with the main body made of zinc alloy and a gold-plated layer on the surface. The appearance is exquisite, suitable for glass doors with a thickness of 8-15mm. The key lock is located outside the door, and the knob is located inside the door. There is an embedded portable handle on the lock, which supports opening doors on both sides
If you have any questions, please click on the chat box in the bottom right corner to contact us, and I hope you can leave your contact information so that we won't be unable to find you. Alternatively, you can click on the link below to contact us.
Chat with us
Require quote
Contact us
Address: Unit 1205, Tianyi Business Center, No. 1 Zhongshan 6th Road, Dongqu Street, Zhongshan District, Yau Tsim Mong District, New Territories, Hong Kong SAR
Phone: +86 13726110546
Email:
beyondxu@sunshine-hardware.com
Business Hours: Monday - Saturday: 9:00 AM - 6:00 PM
Sliding Door lock
Product Feature
- Sliding door lock made of high-quality zinc alloy, with brushed surface finish.
- Side mounted pop-up hidden handle, controlled by the side button for ejection.
- Available in a variety of functions for passage, privacy or entry doors.
- Cross type double hook latch, stable and safe.
- Lifetime mechanical warranty.
Sliding door lock
Specifications
- Door Thickness: 1-3/8"(35mm) to 1/3/4"(45mm).
- Backset: 2-3/8"(60mm), 2-3/4"(70mm).
- Deadbolt: 1“(25.4mm)
- Bolt Projection: 5/8" (15.5mm).
- Cylinder: Schlage C keyway, 5 pin mortise cylinder with 2 keys; specialty keying services available.
- Applicable center spacing: 35/45mm.
- Structure: Fully sealed lockbody structre, suitablefor left or rightdoor
Sliding door lock
Function
Passage with Lockcase:
- Both sides are controlled by lockcase push and pull.
- Edge finger pull operated by push button.
Privacy with Emergency Release:
- The door bolt is operated by an internal knob and an external coin emergency release device.
- Edge finger pull operated by push button.
Entry with Single Cylinder:
- Key outside or thumbturn inside retracts deadbolt with hook
- Edge finger pull operated by push button
Sliding door lock
Installation Process
The sliding door lock made of zinc alloy can be installed by oneself, which is safe and easy to install. Each product comes with an installation manual, allowing you to learn and install it to your heart's content.
