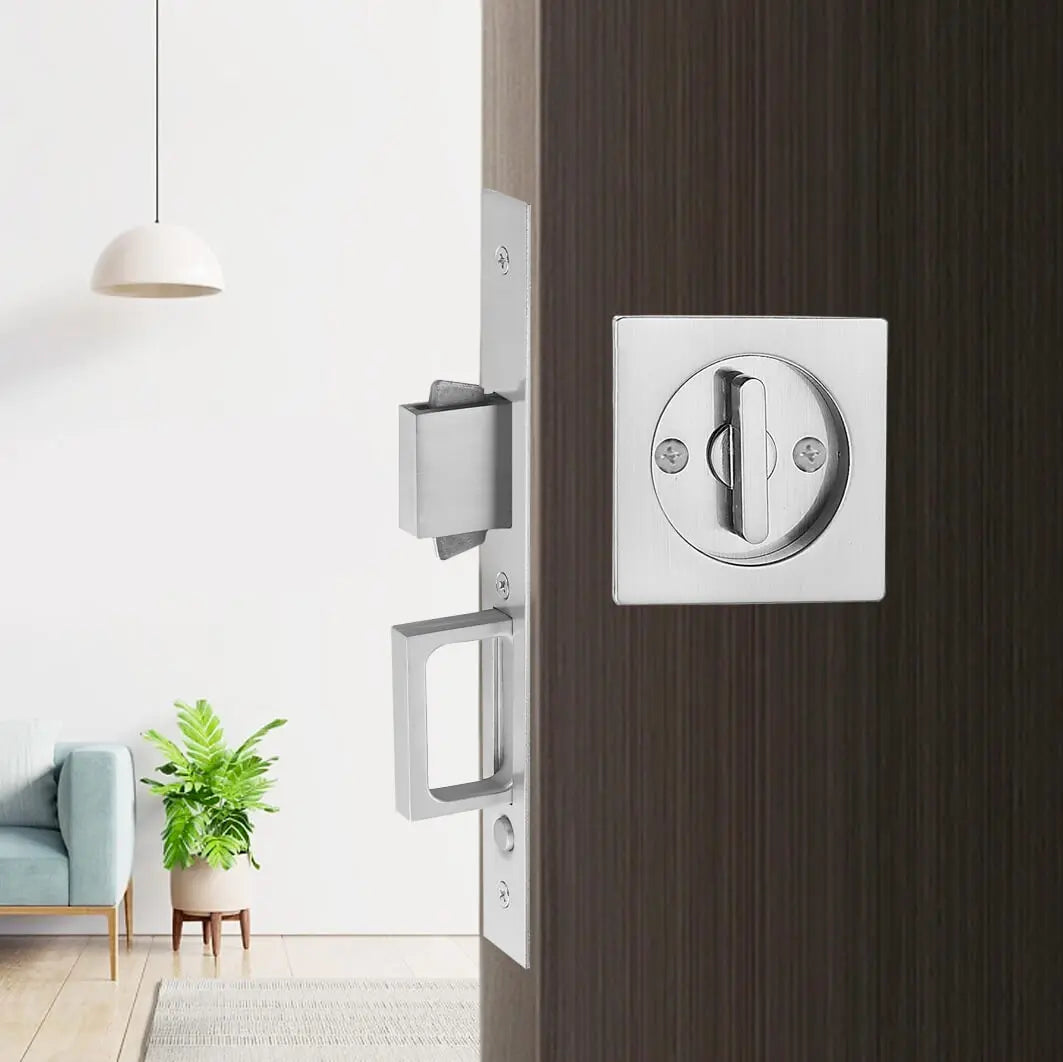

  • Silver pocket door lock installation effect
  • Two dimensional and physical images of the sliding door lock body
  • Step by step installation tutorial for sliding door locks
1 4

Zhongshan sunshine hardware Co.,Ltd

Square Sliding Pocket Door Lock Kit with Satin Nickel

$136.00
$198.00 $136.00
Sale Sold out
Shipping calculated at checkout.

Square Sliding Pocket Door Lock Kit with Satin Nickel


The square brushed silver pocket door lock has a side length of 2.6 inches and an embedded circular handle, inheriting the tradition of safety and the trend of the times. The integrated lock body mortise and tenon lock is equipped with a side retractable pop-up invisible handle, adding a unique touch to life. Sunshine hardware indulges in bold yet rigorous design. Combining trendy and realistic novel ideas, we have created the Sunshine Hardware door lock, and we hope it will be brought to thousands of households.

Product Features
  • The satin nickel finish pocket door locks are made of high-quality zinc alloy, with a brushed surface finish.
  • Unique square pocket door handle design.
  • Paired with a high-precision 60mm backset lock body.
  • Side-mounted pop-up hidden handle, controlled by the side button for ejection.
  • Available in a variety of functions for passage, privacy, or entry doors.
  • Cross-type double hook latch, stable and safe.
  • Support product customization.
  • Lifetime mechanical warranty.
Specifications
  • Door Thickness: 1-3/8"(35mm) to 1/3/4"(45mm).
  • Backset: 2-3/8"(60mm).
  • Deadbolt: 1“(25.4mm).
  • Bolt Projection: 5/8" (15.5mm).
  • Cylinder: Schlage C keyway, 5-pin mortise cylinder with 2 keys; specialty keying services available.
  • Applicable center spacing: 35/45mm.
  • Structure: Fully sealed lockbody structure, suitable for left or right door.
Function

Passage with Lockcase:

  • Both sides are controlled by the lockcase push and pull.
  • The edge finger pull is operated by a push button.

Privacy with Emergency Release:

  • The door bolt is operated by an internal knob and an external coin emergency release device.
  • The edge finger pull operated by push button.

Entry with Single Cylinder:

  • Key outside or thumbturn inside retracts the deadbolt with a hook
  • The edge finger pull is operated by the push button
Installation

The sliding door lock made of zinc alloy can be installed by oneself, which is safe and easy to install. Each product comes with an installation manual, allowing you to learn and install it to your heart's content.

Installation Instructions
