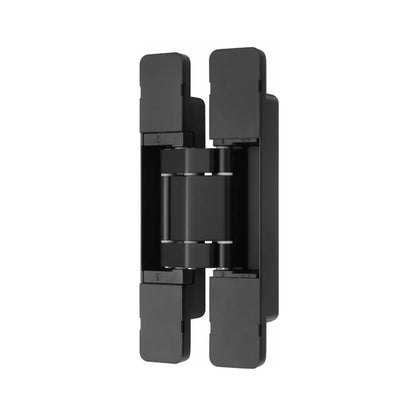

• The GE100 3D concealed hinge is made of high-quality zinc alloy.
• Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 100kg.
• Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
• A clean and seamless look delivers stylish, modern design solutions.
• Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
• Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

• Material: Zinc Alloy.
• Load Capacity: 100 kg.
• Opening angle: ≤180°.
• Door Thickness: ≥40mm.
• Length: 189.8/189.8mm.
• Width: 33.8/31.8mm.
• Up and down adjustment: ± 3.0 mm.
• Left and right adjustment: ± 1.5 mm.
• Before and after adjustment: ± 1.0 mm.

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
