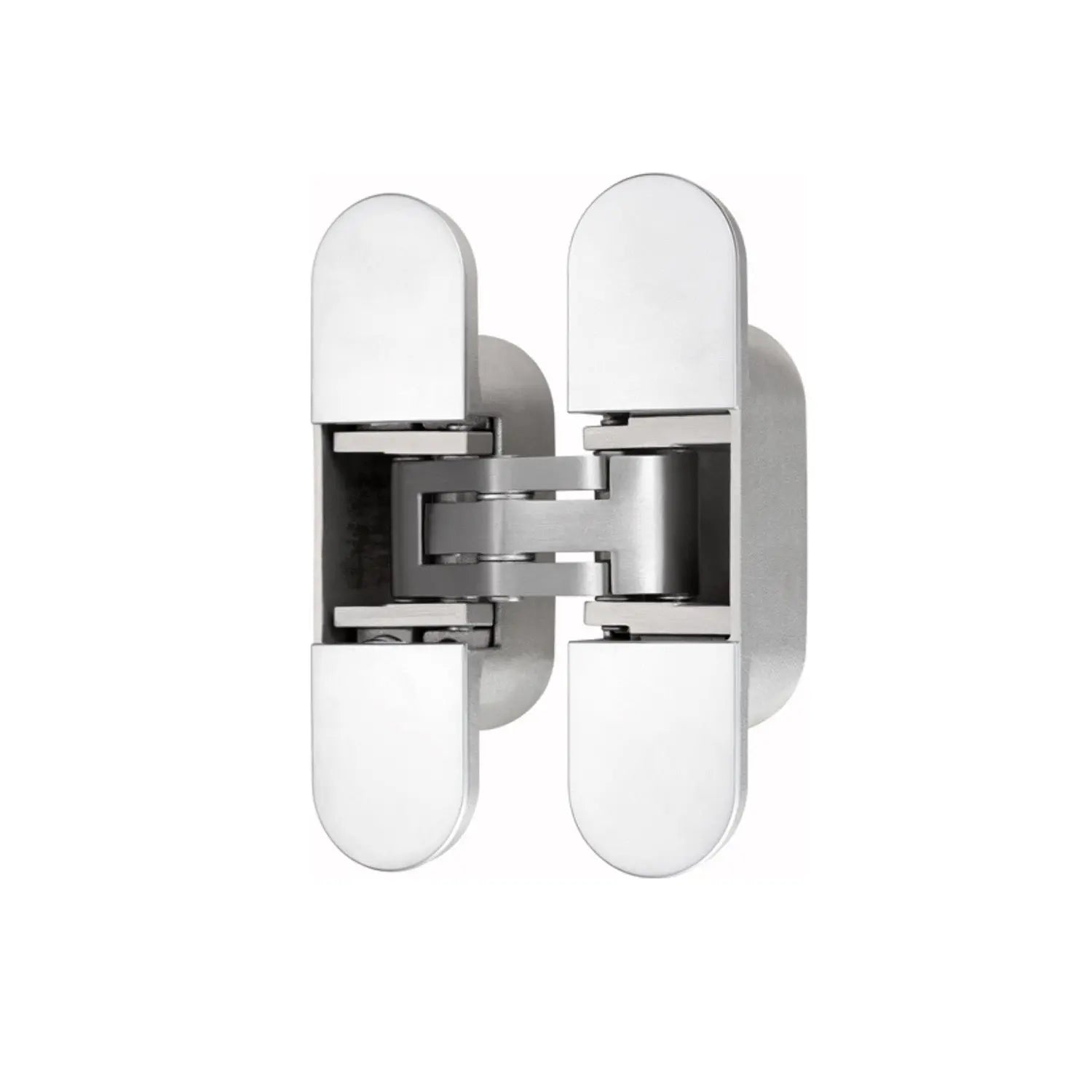

• The GH110 3D concealed hinge is made of high-quality stainless steel.
• Featuring ultra-high load capacity, individual 3D hinges support maximum weights of 100kg.
• Its broad adaptability ensures smooth door operation with a maximum opening angle of 180°
• A clean and seamless look delivers stylish, modern design solutions.
• Suitable for a wide range of applications, designed to fit doors with a thickness greater than 35mm.
• Versatile in design, it serves as a reliable choice for cabinets, doors, and wardrobes.

• Material: Stainless Steel 304.
• Load Capacity: 100kg.
• Opening angle: ≤180°.
• Door Thickness: ≥40mm.
• Length: 112/112mm.
• Width: 29.5/29.5mm.
• Up and down adjustment: ± 2 mm.
• Left and right adjustment: ± 2.5 mm.
• Before and after adjustment: ± 1.0 mm.

Easy to install with standard tools, the hinge can be quickly adjusted for a precise fit. Please refer to the installation video for step-by-step guidance.
