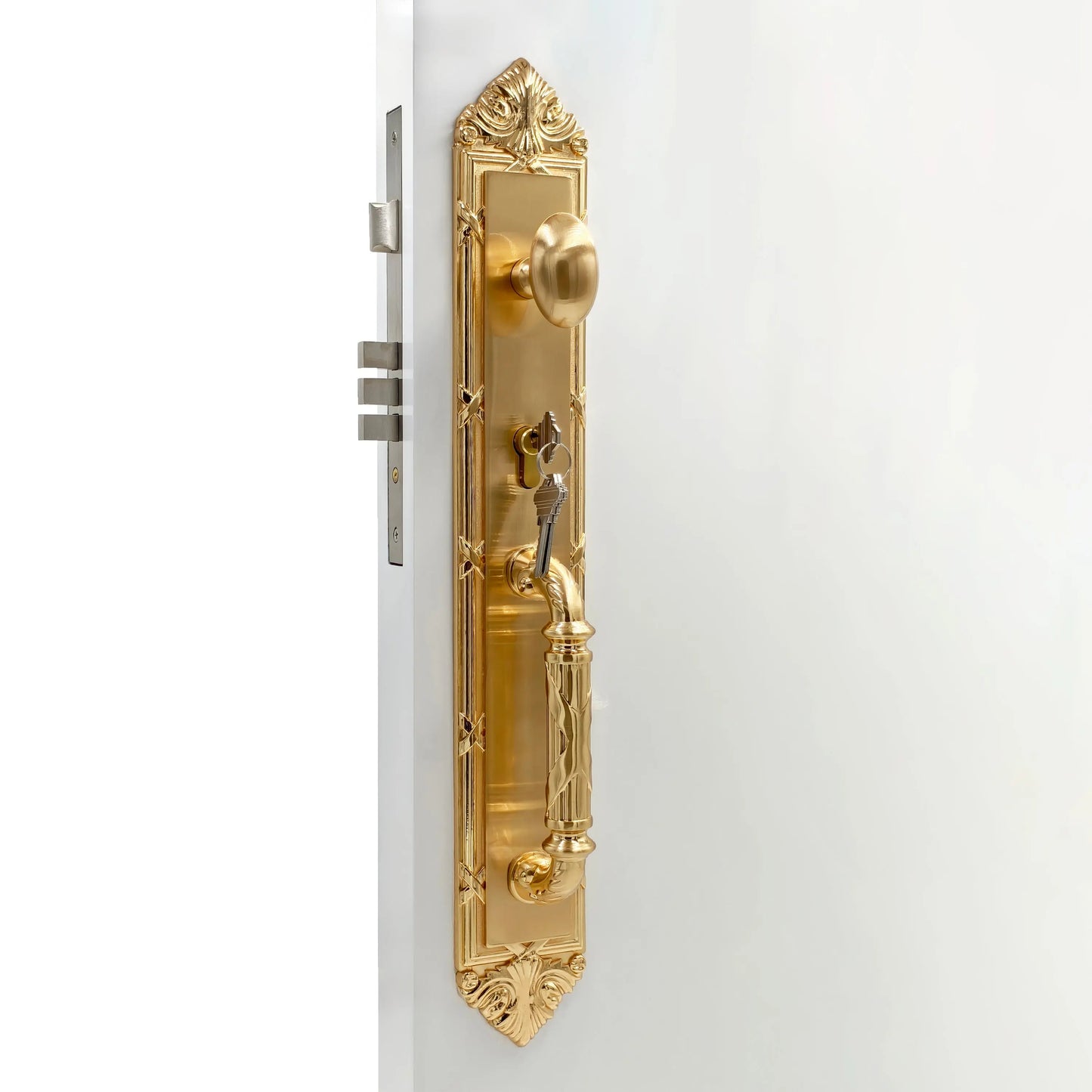

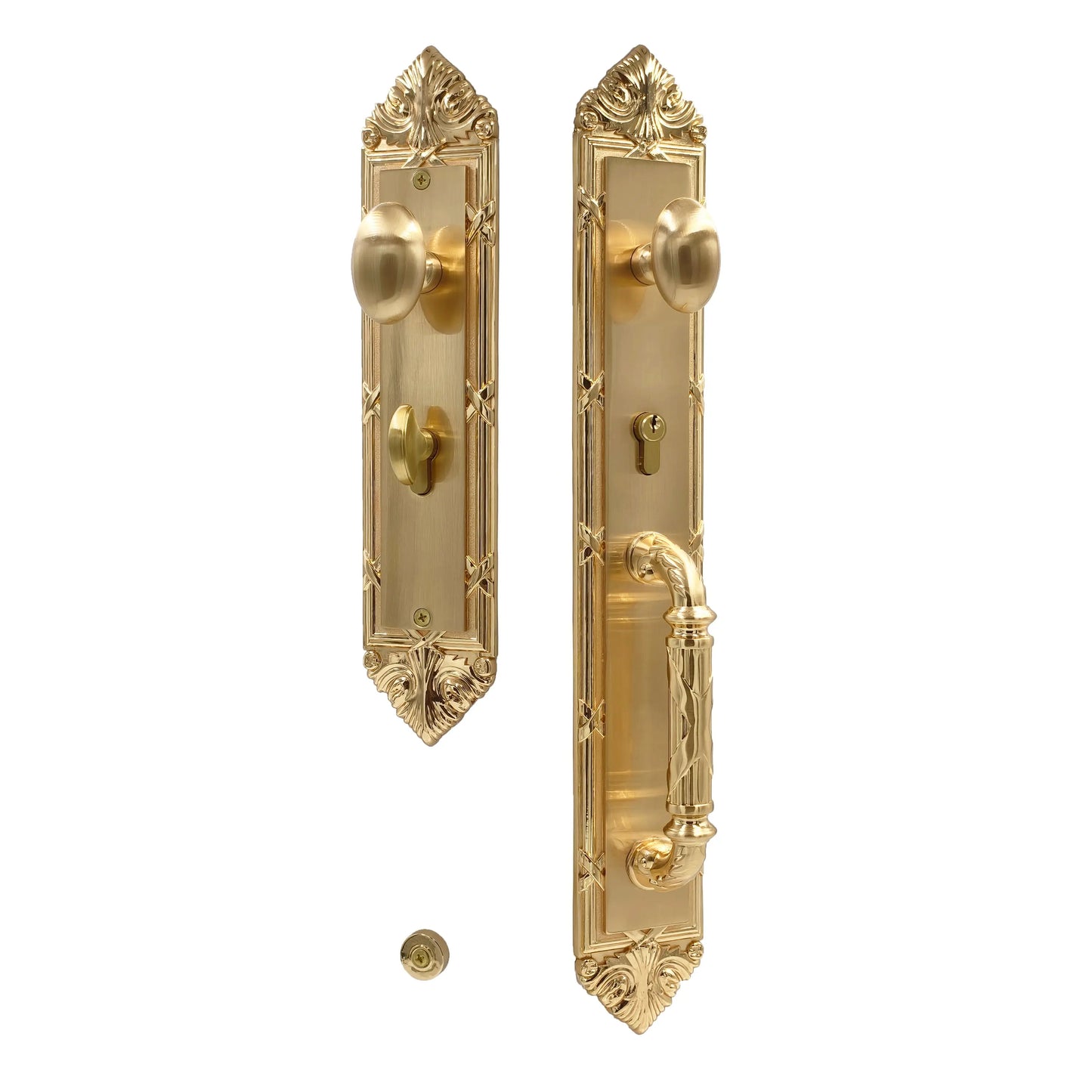

Enhance Your Entryway with the Westminster Door Handleset

Beautiful Design Meets Functionality

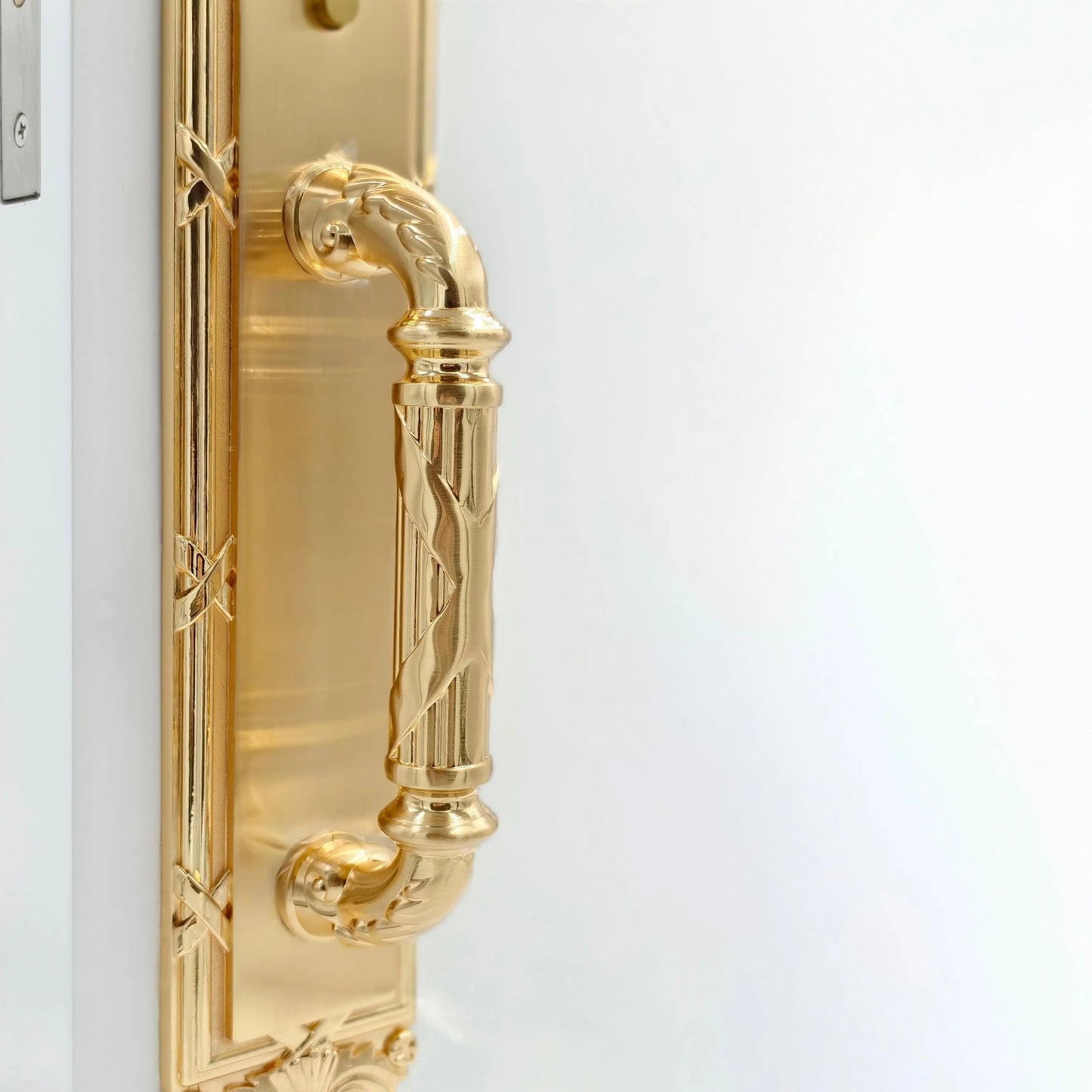

The Westminster one-piece door handleset is designed to impress while providing secure access to your home. Its polished brass finish not only gives it a classic look but also offers durability and resistance to wear. This handleset features a classic grip that promotes comfort and ease of use, ensuring that every guest feels welcomed as they enter your home. The elegant Circolo rosette complements the contemporary goose egg-shaped knob, marrying style with practicality in a sophisticated way.

Reliable Security Features

Security is a top priority when selecting a door handleset, and the Westminster model definitely delivers. This handleset incorporates robust locking mechanisms that work effectively to keep your home safe from unwanted intrusions. With its user-friendly design, you can easily operate the lock with just one hand, ensuring that you never struggle to secure your door. Because it combines aesthetics with performance, you can trust that your entryway is not only beautiful but also secure.

Easy Installation and Maintenance

Installing the Westminster door handleset is a straightforward process that can be completed with basic tools, allowing homeowners to enhance their entryway without the need for professional help. Furthermore, maintaining its charming appearance is easy; a quick wipe with a soft, damp cloth is all it takes to keep it looking pristine. Therefore, investing in this handleset not only elevates your home's curb appeal, but also saves you effort and time in upkeep.



Product Features

• The entry handleset is made of high-quality zinc alloy, which combines practicality and aesthetics.
• Various styles are available, with integrated lock plates each providing unique benefits.
• Hidden screw structure, no screw holes on the outer lock plate.
• Double door latch mechanism, also available with lock bodies in various sizes.
• Standard center-to-center dimensions of 3.6" and 5.5".

Specifications

• Door Thickness: 1-¾” to 2”.
• Backset: 2-⅜“ or 2-¾” adjustable latch.
• Hole Center: 5.5" center to center.
• Bore: 2-⅛“ diameter.
• Latch: 45-degree turn.
• Deadbolt: 1" throw, anti-saw pin.
• Latchbolt: 0.50" throw.
• Cylinder: 5-pin SC1 keyway.
• Key: Wide bow.

Function

Adjustable Latch for Deadbolt:

• Most models are equipped with a latch that can be adjusted between either 2-3/8" or 2-3/4" backset.
• To adjust from 2-3/8” to 2-3/4“ backset, hold the latch faceplate still and simply rotate the latch body 180 degrees counter clockwise until it stops.
• To adjust from 2-3/8" to 2-3/4" rotate latch body 180 degrees clockwise until it stops.

Adjustable Latch for Handleset:

• Slide up S1 button and hold it.
• Push down 2-3/8" above button to slide to 2-3/4" until it stops.
• Do one more slide to the 2-3/8" until it stops.
