• The black handle of patio sliding door lock
  • The main structure of the courtyard sliding door lock
  • Several colors of sliding door locks for the courtyard are arranged in a row
  • The main body of the patio sliding door lock outside the door
  • The detail size of the patio sliding door lock body
  • All components of the patio sliding door lock
  • Four patio sliding door lock handles of different colors are arranged in a beautiful picture
1 7

Zhongshan sunshine hardware Co.,Ltd

Sliding Patio Door Lock with Key

$83.00
$102.00 $83.00
Sale Sold out
Shipping calculated at checkout.

Sliding Patio Door Lock with Key

This patio sliding door lock with key suits glass door locks on patios and balconies. The main body is made of aluminum alloy and weighs about one kilogram, making it very lightweight. This lock supports key unlocking outside the door, but a 45° keyway toggle switch inside the door can be directly locked and unlocked. It is suitable for door edge thicknesses of 35-50 millimeters and comes in matte black, gun gray, gold, and white colors. The surface has an electroplated coating.

Product Features

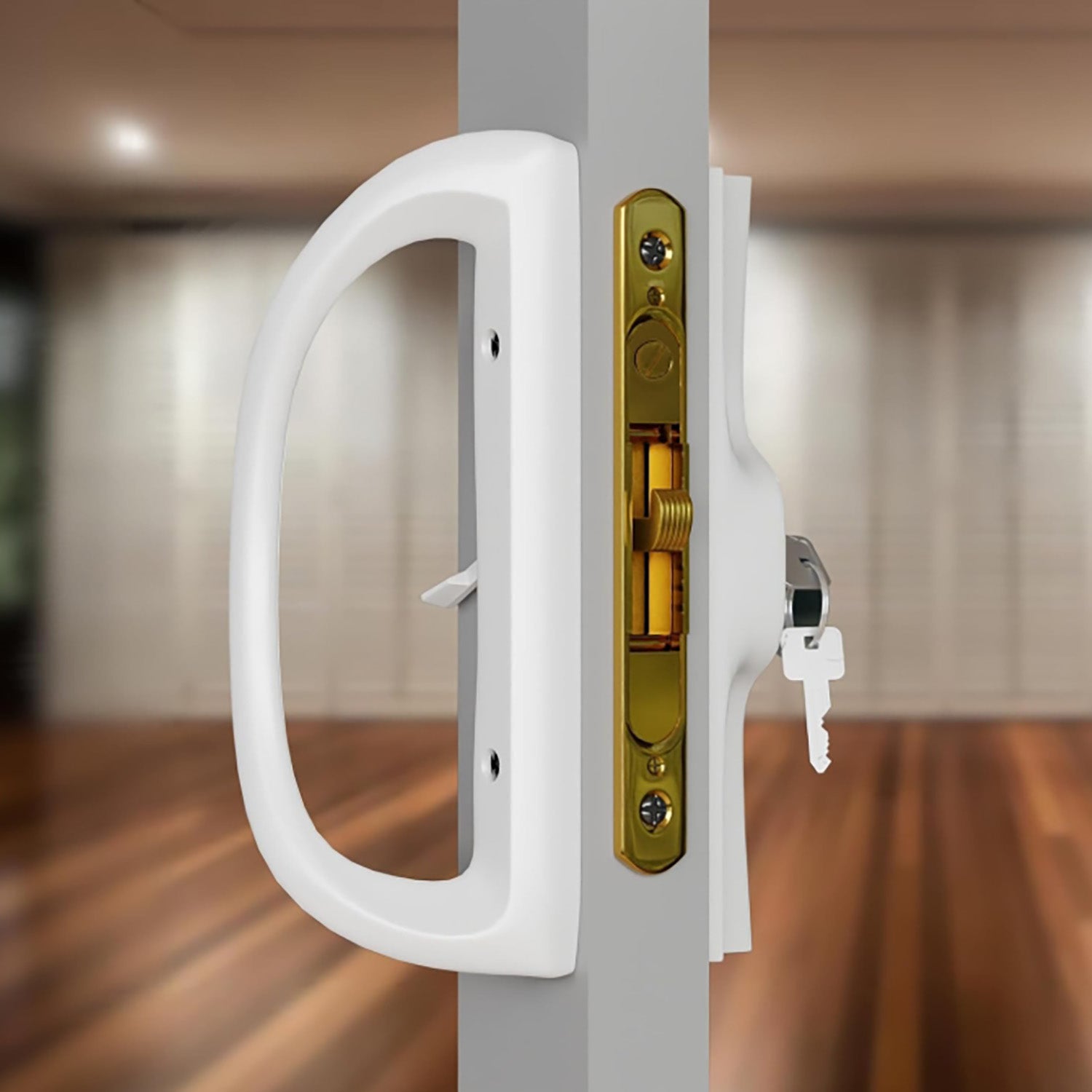

  • The exterior die-cast pull of the patio door lock comes equipped with a keyed cylinder for secure access.
  • This patio door lock features a unique curved handle paired with a mortise lock body, ensuring enhanced security.
  • Portable operation, paired with a one-handed switchable knob.
  • 3-15/16 inch standard hole spacing, suitable for sliding doors with left- or right-opening configurations.
  • Designed for easy installation and effortless setup.
Specifications
  • Material: Aluminum alloy.
  • Door Thickness: 1-3/8"(35mm) to 1/3/4"(45mm).
  • Hole Space: 3-15/16".
  • Locking Mechanism: Knob and key.
  • Knob Pin Rotation: 90° keyway.
  • Interior Projection: 1.18".
  • Exterior Projection: 2.36".
  • Cylinder: Schlage C keyway, 5 pin mortise cylinder with 2 keys; specialty keying services available.
  • Applicable center spacing: 35/45mm.
  • Structure: Fully sealed lockbody structre, suitablefor left or rightdoor.

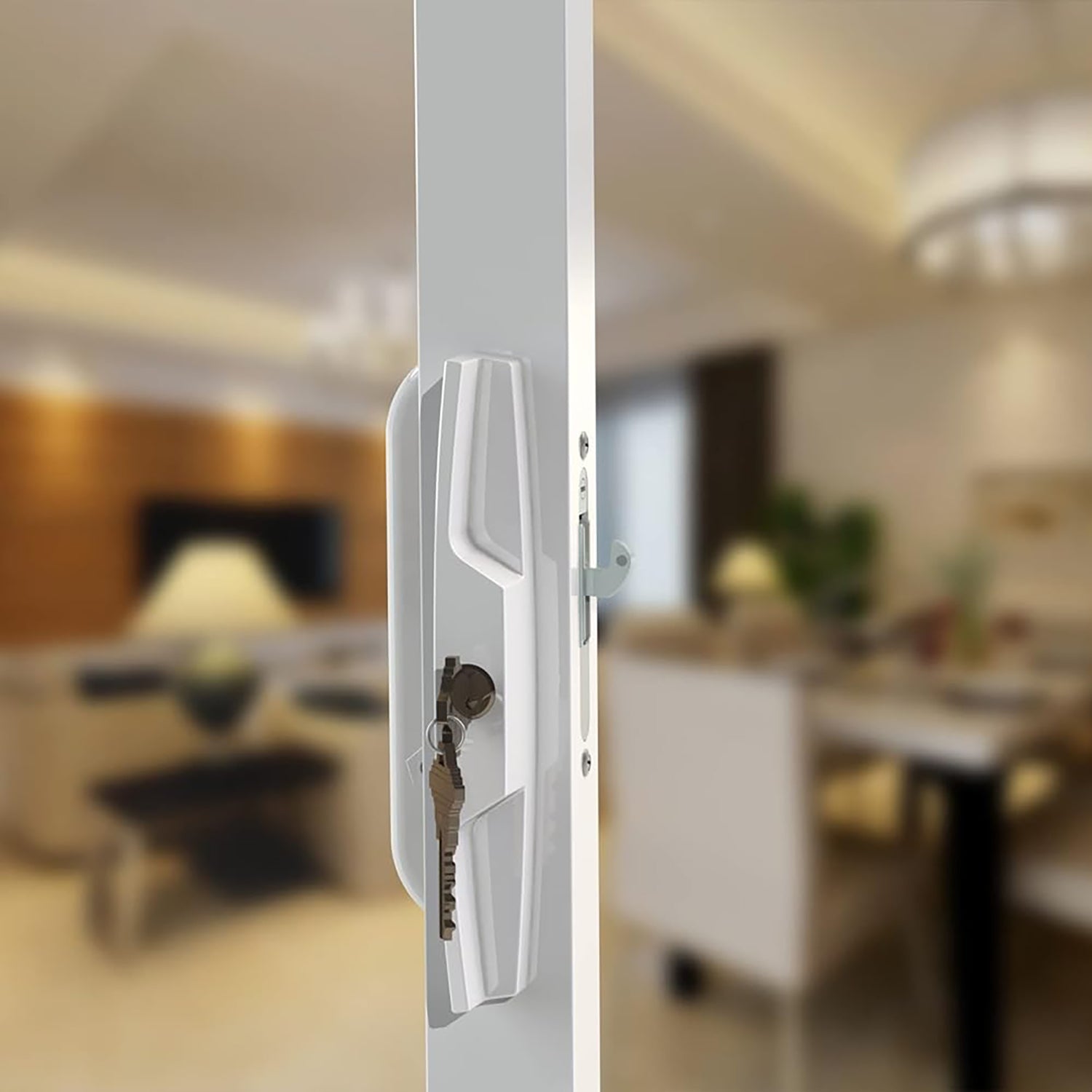

Function
  • Passage with Lockcase:

The patio door lock with a single-hook body is operated by a thumbturn on both interior and exterior sides.

  • Entry with Single Cylinder:

The patio door lock deadbolt with a hook can be retracted by key from outside or thumbturn from inside.

Installation

This zinc alloy patio door lock is safe, durable, and easy to install by yourself. Each lock includes a detailed installation manual for hassle-free setup.
